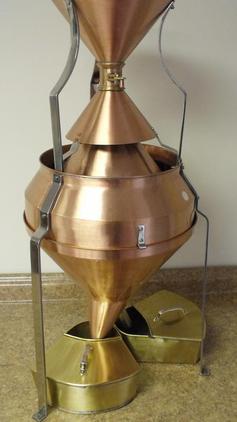

QAQC LAB DELUXE BOERNER SAMPLE DIVIDER
BOERNER TYPE DIVIDER
673 6716
This divider is made to meet F.CI. and B.I.S. Requirements. Material flowing components are made by a special process, to give a smooth finish. Hand made without welding or joints. It is used to reduce the size of a grain/seed sample into two halves, each exactly representative of the original sample. To operate this device, a sample of grain is poured into the hopper and then released down the cone, directly under the center of the opening.

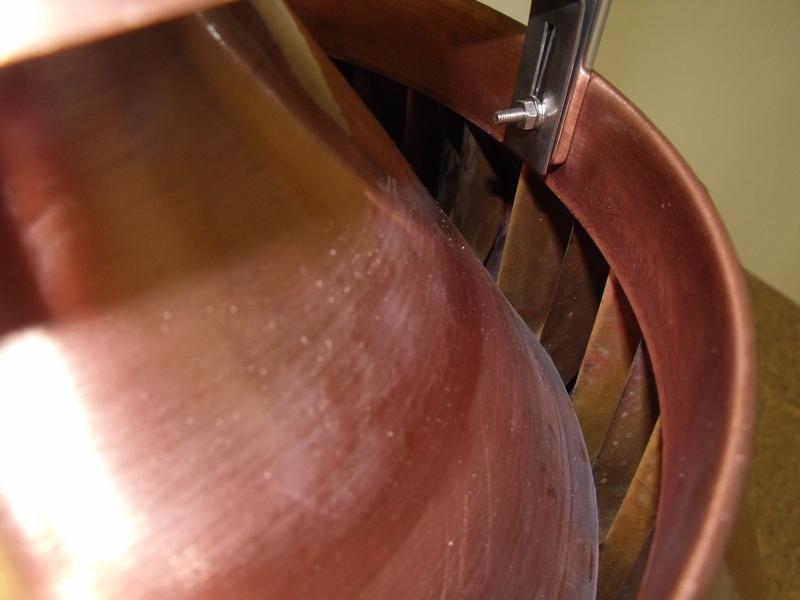

Around the base of the cone are 38 openings or pockets. The grain falling down the sides of the cone is cut into 38 separate streams, rejoining into two streams, which empty into the pans. The divider is calibrated to provide accuracy of 1 % between pans on a 1000g sample. The body and inner parts are made of brass, eliminating possibility of rust. The legs and supports are made of painted steel.
SPECIFICATIONS

Size : 86 cm Height x 38 cm dia (Approx.)
No. of Pockets : 38
Supplied with two brass sample pans.
qclabequipment
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
673 6716     BOERNER TYPE DIVIDER DELUXE COPPER & BRASS
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]

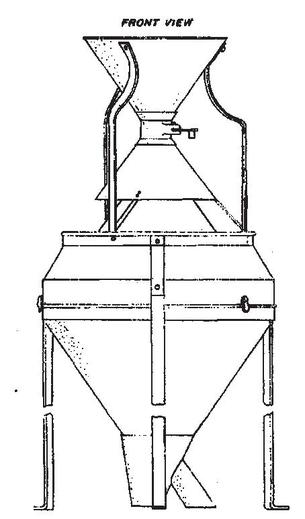

boerner divider schematic
qclabequipment
qclabequipment
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone      (804) 318-3686
Toll Free US   (866) 244 1578
Fax                  (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE

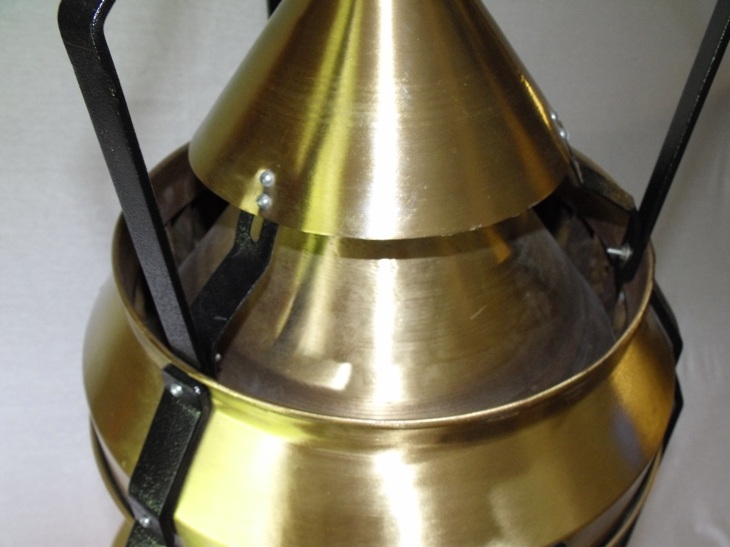

boerner divider mid section
