THE FC SERIES  WAS DEVELOPED TO HELP ELIMINATE SOME OF THE PROBLEMS ENCOUNTERED WHEN ANALYZING SIZE AND SHAPE PARAMETERS, IN PARTICLES SUSPENDED IN A LIQUID OR SLURRY, MOST NOTABLY PARTICLES THAT ARE TOO SMALL OR OPAQUE, TO REGISTER WITH STANDARD LASER DIFFRACTION, OR ,"WHITE LIGHT" DIGITAL IMAGING DEVICES.
NEW HIGH RESOLUTION IMAGING TECHNOLOGY
The new high resolution imaging technology, is accomplished in part, by using special backlighting techniques focused from behind the sample. An adjustable range, monochromatic, blue light source has been shown to provide optimal contrast conditions for the particles, and virtually eliminate diffraction. The light is collimated, and acts as a high definition caliper. In the case of liquids and suspensions, the light flashes simultaneously with a high speed, high definition camera, for extremely robust particle definitions.
collimated light graphic
FC SERIES (FLOW CELL) PARTICLE CHARACTERISTIC ANALYZERS FOR PARTICLES SUSPENDED IN LIQUID
MONOCHROMATIC COLLIMATED BACKLIGHT ACTS LIKE A CALIPER, AND PROVIDES RESOLUTION UNATTAINABLE WITH WHITE LIGHT OR LASER DIFFRACTION
TELECENTRIC LENS- IMAGE MAGNIFICATION IS INDEPENDENT OF THE OBJECTS DISTANCE OR POSITION IN THE FIELD OF VIEW
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone   (804) 318-3686
Toll Free US (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
flowcell
collimated light graphic
NEW ADVANCES IN HIGH RESOLUTION IMAGING!
SAMPLE TYPE:
PARTICLES SUSPENDED IN LIQUIDS AND         SENSITIVE TO BREAKAGE
WET 800 nm to 1 mm

SAMPLE TRANSPORT METHOD:
PARTICLES < 500 microns MEMBRANE PUMP
PARTICLES  > 500 microns PERILSTATIC PUMP
flowcell
flowcell
SAMPLE TYPE:
PARTICLES SUSPENDED IN LIQUID
FOR SMALLER PARTICLES
WET 200 nm to 1 mm

SAMPLE TRANSPORT METHOD
SYRINGE PUMP
HIGH RESOLUTION OPTION AVAILABLE
10 MILLION PIXELS
HIGH RESOLUTION OPTION AVAILABLE
10 MILLION PIXELS
MAGNETIC STIRRER KEEPS PARTICLES IN SUSPENSION

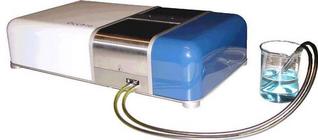

    OCCHIO FC200 SERIES FOR LIQUIDS AND SLURRIES
SPECIFICATIONS, BROCHURE VIDEO
SPECIFICATIONS, BROCHURE VIDEO
flowcell
FC200M                                                                                FC200S                                                                               FC200S IPAC
SAMPLE TYPE:
PARTICLES SUSPENDED IN LIQUID
FOR SMALLER PARTICLES
WET 200 nm to 1 mm

SAMPLE TRANSPORT METHOD
SYRINGE PUMP

ADAPTED FOR PROTEIN AGGREGATE COUNTING AND ANALYSIS

HIGH RESOLUTION OPTION STANDARD
NEW FOR BIOTECH
SPECIFICATIONS, BROCHURE VIDEO
flowcell
flowcell

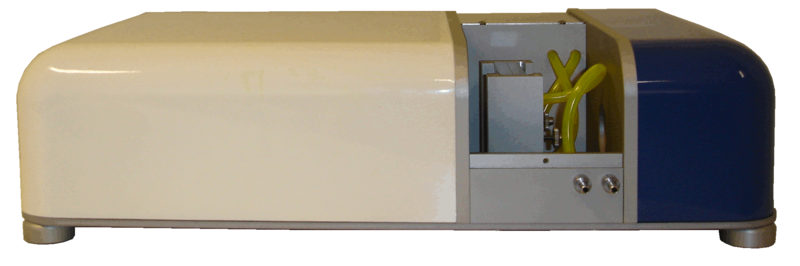

MEMBRANE PUMP FOR PARTICLES
SENSITIVE TO BREAKAGE

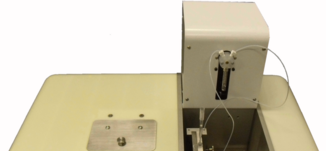

SYRINGE PUMP FOR
EXTREME PRECISION SAMPLING
PURPOSE SPECIFIC PUMPS
flowcell
Armadillo Software

Created and developed by the engineers at Occhio. Used in conjunction with any Occhio
instrument, this software receives and deciphers the vast amounts of digital information which is supplied
during microscopy analyses. Certified to conform with ISO 9276-6 Norms, this software uses powerful algorithms to interpret, characterize, and sort each particle independently. With over 60 evaluation tools,
Callisto 3D allows the user to thoroughly review analysis results for thousands of different applications.
