 BENCH TOP AND INLINE PARTICLE CHARACTERIZATION USING DIGITAL IMAGING AND ADVANCED SAMPLE DISPERSION SYSTEMS
COMPLETE SELECTION FOR ALL SAMPLE TYPES INCLUDING SOLIDS, POWDERS, LIQUIDS, AND COMBINATIONS
collimated light
telecentric lens
Powders, granulars, and liquids, can now be analyzed with extreme precision, using a number of innovative sample transport techniques. For less dense powders, vacuum dispersion, either by itself, or in conjunction with a vibrating platform, are utilized to move the particles in to the field of view. Liquids and slurries, are kept in suspension using magnetic stirrers, while specially designed pumps, draw precise amounts through specially engineered parallel glass slides (flowcell). Our particle measurement systems have superior resolution, compared to laser diffraction, allow for precise analysis of particles as small as 200 nanometers, which makes this technology not only suitable, but preferable for exacting applications like protein aggregate characterization.

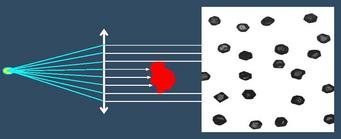

A MONOCHROMATIC, COLLIMATED BACK LIGHT, ACTS LIKE A CALIPER, PROVIDING PRECISE PARTICLE DEFINITION
occhio zephyr series
ANALYSIS PARAMETERS
DRY 30 micron to 30 mm
WET 30 micron to 1 mm

SAMPLE TRANSPORT AND
DISPERSION METHOD:

DRY-VIBRATING HOPPER / GRAVITY / VACCUUM ASSIST
LIQUID- FLOWCELL WITH PURPOSE SPECIFIC PUMP

NOTE: SAMPLE IS RETAINED IN COLLECTION DRAWER

MORE INFORMATION, BROCHURE, VIDEO
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM

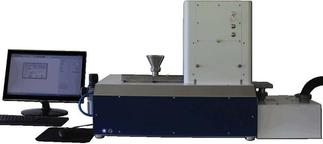

OCCHIO ZEPHYR SERIES Particle Measurement Systems
