DISPOSABLE POWDER THIEF AVAILABLE STERILE

DIsposable powder sampler single point POWDER THIEF
BROCHURE
ONLINE PRICING
QAQC LAB DISPOSABLE POWDER THIEF
Disposable Powder THief Sampler
logo
logo
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone      (804) 318-3686
Toll Free US   (866) 244 1578
Fax                  (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
• Assembled & Packed in a Cleanroom
• Individually Bagged
• FDA & EU 10/2011 Conforming Materials
• BSE/TSE Free
• Full Batch Traceability
• ATEX Rated
• Available Sterile

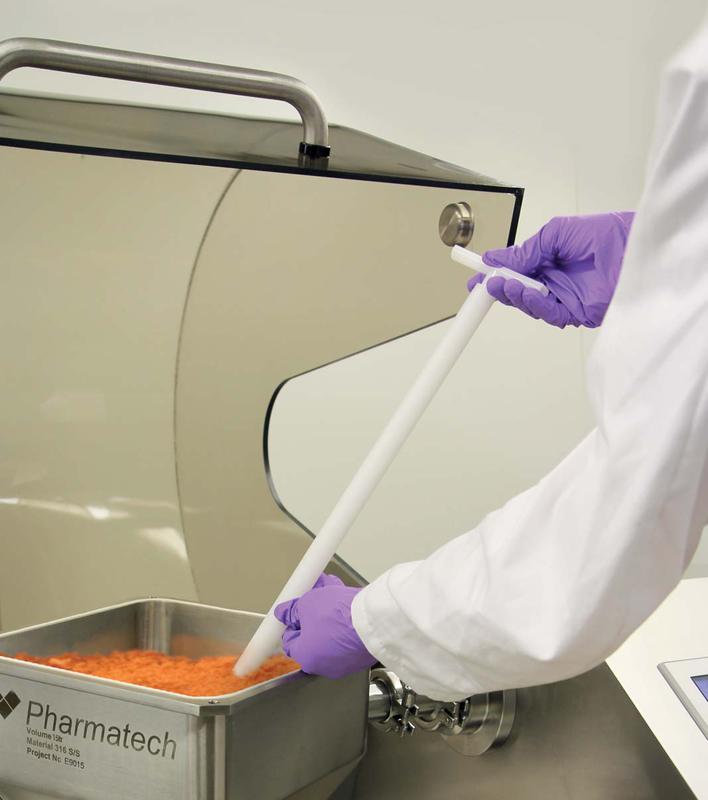

OPERATION:

1. Insert the sampler into the product.
    Ensure that the tip is inside the sampler body

2. At the required depth pull up the body to expose the tip.
    The sample will fall in around the tip

3. Push down body of the sampler to trap the sample

4. Withdraw sampler

5. Pull up body to empty sample
Disposable Powder THief Sampler
Disposable Powder THief Sampler

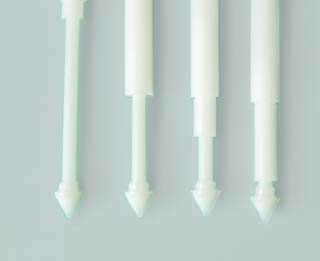

Disposable Powder THief Sampler tips
20 ml       10 ml        5 ml          1 ml
Part No               Pre-Sterilized               Nominal Tip Size       Overall Length

​675 8060H501           No                               1 ml                            500 mm

675 8060H501S        Yes                              1 ml                            500 mm

675 8060H505           No                               5 ml                            500 mm

675 8060H505       Yes                              5 ml                            500 mm

675 8060H510           No                              10 ml                           500 mm

675 8060H510S        Yes                             10 ml                           500 mm

675 8060H520           No                              20 ml                           500 mm

675 8060H520S        Yes                             20 ml                           500 mm
SPECIFICATIONS
MATERIAL HDPE     DIAMETER 21 mm  20 PER BOX
Disposable Powder THief Sampler tips
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
QUICK QUOTE
Part No               Pre-Sterilized               Nominal Tip Size       Overall Length

675 8060H1001         No                                1 ml                          1000 mm

675 8060H1001S      Yes                               1 ml                          1000 mm

675 8060H1005         No                                5 ml                          1000 mm

675 8060H1005S      Yes                               5 ml                          1000 mm

675 8060H1010         No                              10 ml                          1000 mm

675 8060H1010S      Yes                             10 ml                          1000 mm

675 8060H1020         No                              20 ml                          1000 mm

675 8060H1020     Yes                             20ml                           1000 mm
SPECIFICATIONS
MATERIAL HDPE     DIAMETER 21 mm  20 PER BOX
STORE SEARCH

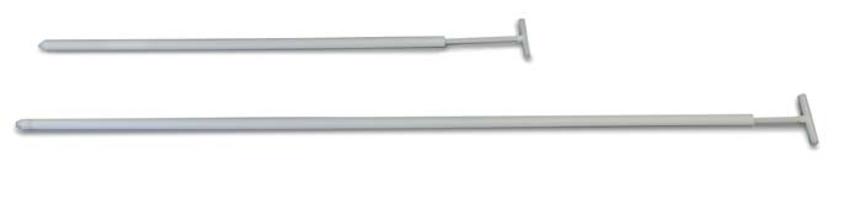

The disposable Powder Thief is ideal for taking representative samples from known locations within the bulk powder. These devices are available in two convenient lengths and four sample volumes.
