QAQC LAB DISPOSABLE LIQUID AND VISCOUS SAMPLERS
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT
QTY
REF #                     LENGTH   PRE-STERILIZED      VOLUME MATERIAL

675 8050H500       500 mm                                         100 ml      HDPE

675 8050H500S     500 mm     Yes                              100 ml      HDPE

675 8050P500       500 mm                                         100 ml      PP

675 8050H1000   1000 mm                                         190 ml      HDPE

675 8050H1000S 1000 mm     Yes                              190 ml      HDPE

675 8050P1000   1000 mm                                         190 ml      PP

675 8050H1500   1000 mm                                         300 ml      HDPE

675 8050H1500S 1000 mm     Yes                              300 ml     HDPE
DISPOSABLE LIQUID SAMPLERS 1.5 mm ORIFICE 21 mm DIAMETER 20 PER BOX
REF #                      LENGTH    PRE-STERILIZED     VOLUME MATERIAL

675 8055H500       500 mm                                         100 ml     HDPE

675 8055H500S     500 mm      Yes                             100 ml     HDPE

675 8055P500       500 mm                                         100 ml     PP

675 8055H1000   1000 mm                                         190 ml     HDPE

675 8055H1000S 1000 mm      Yes                             190 ml     HDPE

675 8055P1000   1000 mm                                         190 ml     PP

675 8055H1500    1500 mm                                        300 ml     HDPE

675 8055H1500S  1500 mm     Yes                             300 ml    HDPE
DISPOSABLE VISCOUS LIQUID SAMPLERS 10 mm ORIFICE 21 mm DIAMETER 20 PER BOX
The LiquiThief and ViscoThief are essentially the same except for the size of the hole in the tip. The LiquiThief has a small hole (for sampling low viscosity liquids) and the ViscoThief has a large hole (for sampling high viscosity liquids and creams)
​FEATURES:

• Fully welded construction (no adhesives or screws are used)
• Assembled in a medical clean room
• Each sampler is individually wrapped
• Made from HDPE or PP (FDA acceptable grade conforms to CFR 177.1520)
• FDA acceptable silicone rubber is used for the piston seal - CFR 177.2600
• ATEX Rated for Zones 0,1 & 2

OPTIONS

• Pre-sterilized
1.5 mm DIAMETER
SAMPLE ENTRY PORT
FOR LIQUIDS
10 mm DIAMETER
SAMPLE ENTRY PORT
FOR VISCOUS MATERIALS

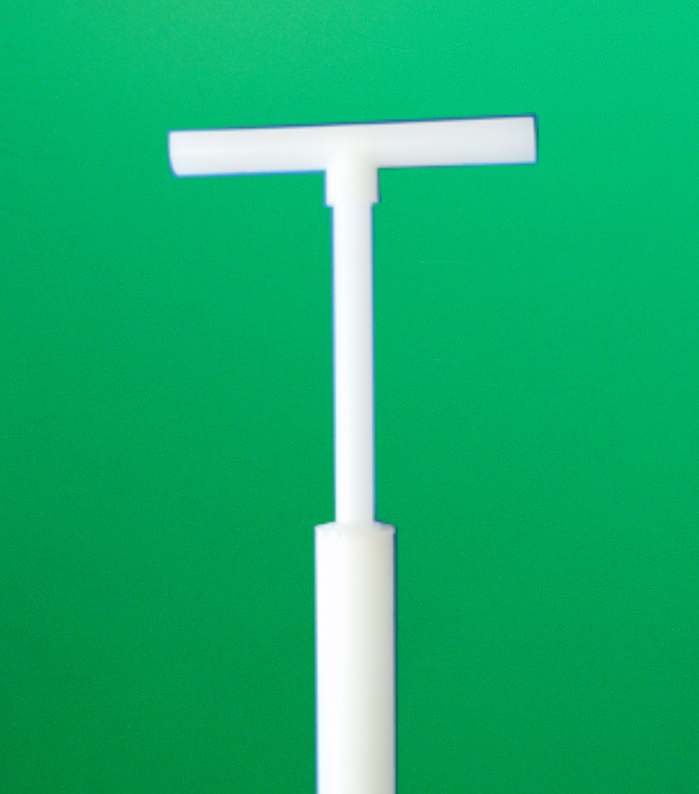

Ergonomic Handle -
makes sample taking easy

Built in clutch makes
the sampler operate smoothly
No cleaning validation costs
No cross contamination worries
BUY ONLINE
QTY
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
QAQC DISPOSABLE LIQUID SAMPLER     675 8050
QAQC DISPOSABLE VISCOUS SAMPLER  675 8055
