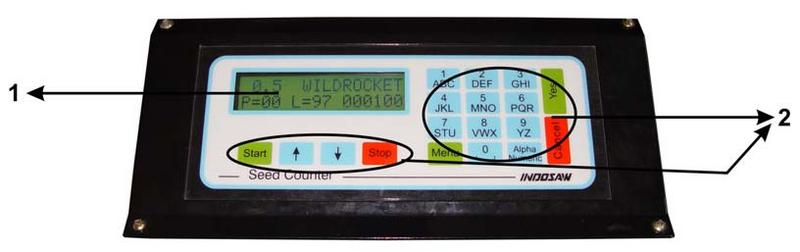

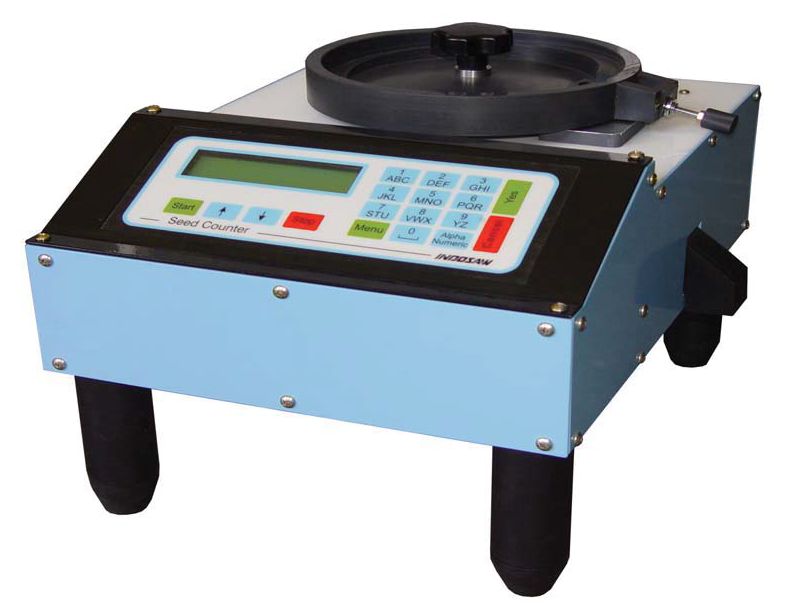

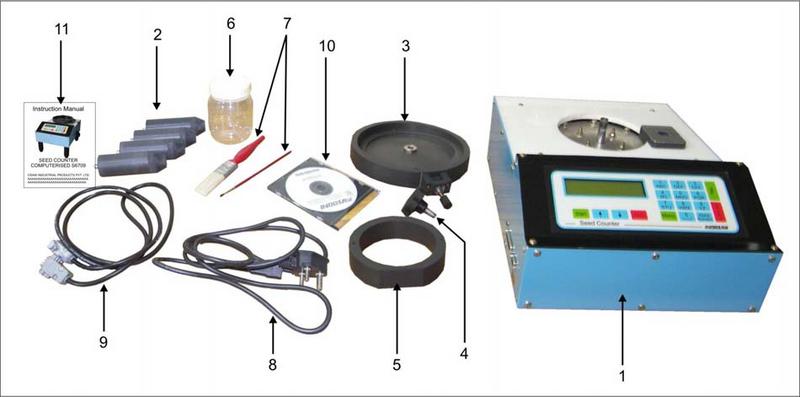

QAQC SEED COUNTER 673 S6709 QAQC LAB STANDARD SEED COUNTER FEATURES: Removable Pan, Seed setting of lots Count setting Entering names of commodities. Facility to interface with Printer and Computer for transferring the data. PRINCIPLE OF OPERATION The QAQC Seed Counter works on the principle of electromagnetic vibrations and opto‐electronics. The seed is fed into the counting chamber, and interrupts the optical beam to count the seeds. The Seed Counter is designed for tabletop use. The machine consists of two electromagnets, coupled with spring action, to cause the seed on the spiral pan to move in a clockwise direction. The speed of vibrations can be controlled automatically by the UP/DOWN keys on the keypad. The Pan consists of a screw arrangement for adjusting the feed of the seeds in to a single row for counting. The aligned seeds are dropped into the chute. An opto‐electronic sensor detects the seeds, which are then collected in a storage box. The seed counter vibrations has a soft start and soft stop feature, for accurate counting. The soft start function is automatic, and the soft stop function is programmed by the user. 1. Seed Counter 2. Supporting Legs 3. Spiral Pan 4. Clamping Knob 5. Annular disk 6. Seed collecting bin 7. Brushes 8. Power Cord 9. Serial Cable for Data transfer to PC 10.Software (RS‐232) CD 11. Operating Instructions manual SPECIFICATIONS: Size : 39 X 30 X 29 Cm3 Weight : 18 Kg (Approx.) Count : 0‐9999 Seed Size : Between 0.5mm & 15mm Display : 16 X 2 character alphanumeric LCD Input Supply : 110 V / 220V AC, 50Hz/60Hz 1. LCD Display (16X2 Character) 2. Keypad Section WHITESTONE VA TEL (804) 318-3686 FAX (703) 991-7133 Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved. EQUIPMENT FOR QUALITY CONTROL AND R&D Telephone (804) 318-3686 Toll Free US (866) 244 1578 Fax (703) 991-7133 Hours 8 AM - 6 PM EST INTERNATIONAL & DOMESTIC SALES CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT DELIVERIES WORLDWIDE PERFORMANCE GUARANTEE QAQC LAB COUNT & PACK MODEL SPECIFICATIONS: Micro controller based with membrane keypad. 16x 2 line alphanumeric LCD display with backlit. Seed name, seed size and vibration strength displayed on LCD while counting. Count maximum upto 999999 seeds in a lot. Electromagnetic vibratory feed. Precise digital vibration control through membrane keypad (no knob required) Programmable Stop to compensate in flight error. Count Seeds in the Range 0.4mm to 15mm. Knob provided for removing pan easily. Separate Pan for Seed Size below 1 mm. Adjustable knob provided on Pan to ensure that the seeds move in a single row. Metallic Pan (Volume- 200 cc).. RS 232 and parallel port interface capabilities for attaching computer and printer. Pouch Size: 5 x 10 cm to 10-20 cm. Packing speed depends on the seeds. VIDEO MANUFACTURING DISTRIBUTION TECHNICAL SERVICES FOR ANALYTICAL INSTRUMENTATION TELEPHONE (804) 318-3686 TOLL FREE (866) 244-1578 COMPLETE INTERACTIVE SAMPLER CATALOGUE PDF DOWNLOAD

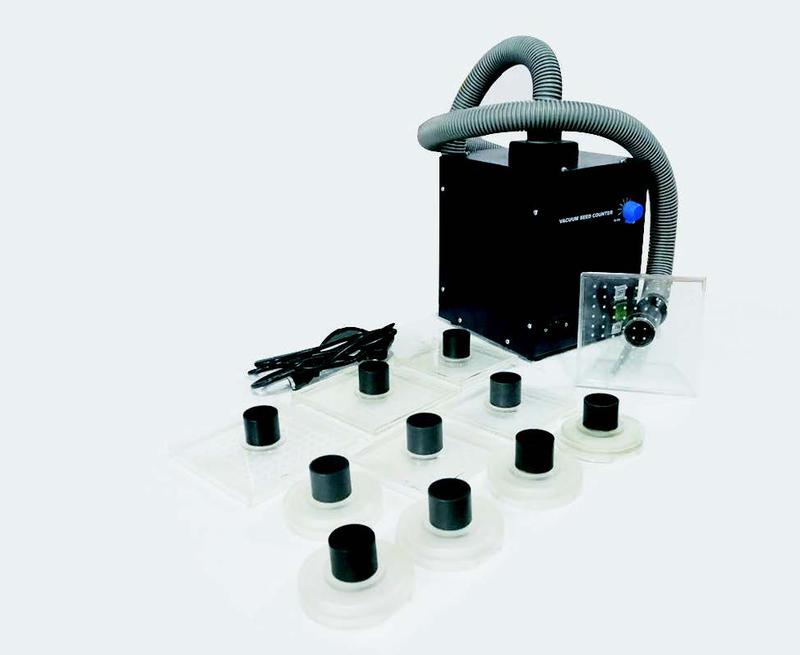

QAQC VACUUM SEED COUNTERS are ideal for the seed testing and research laboratories; quick and accurate counting of seeds. Capable of counting wheat, paddy, mustard, pearl millet, sorghum, black gram, green gram, lentil, red gram, finger millet, etc. The seeds stick on the holes of the head. The head is fitted to the handle of the hose. The head has 50/100 holes, on which seeds are sucked through vacuum. The seeds may be released from head after vacuum release. Holes of different sizes of head are available, depending on the seed size, you may choose specific head. Thus, different sizes of seed can be counted. It has the facility suck 50/100 seeds at a time and further used for germination potential of these seeds.
