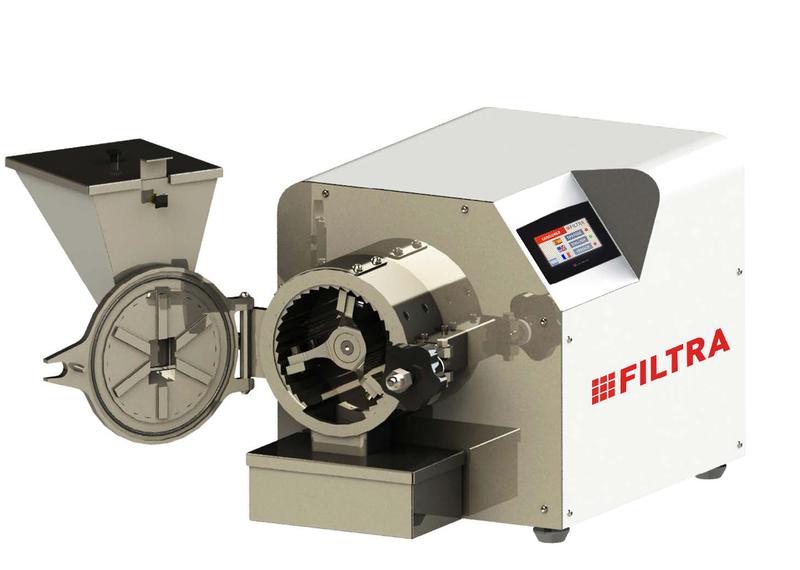

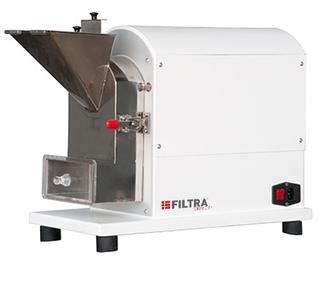

Small and economical hammer grinding mill for milling small quantities of product for laboratory testing.

Designed for the milling of a great variety of solid, soft, or semi-hard materials
such as cereals, spices, seeds, land, etc.

Feeding is via vertical input which allow products with a particle
size range of + or – 15 mm.

Quick release door with safety micro-sensor which is activated
when the rotor and blades are in operation.

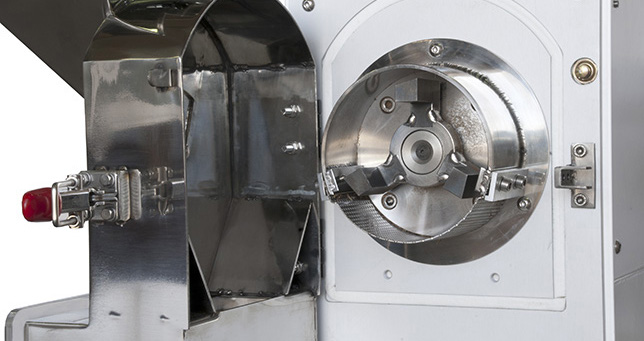

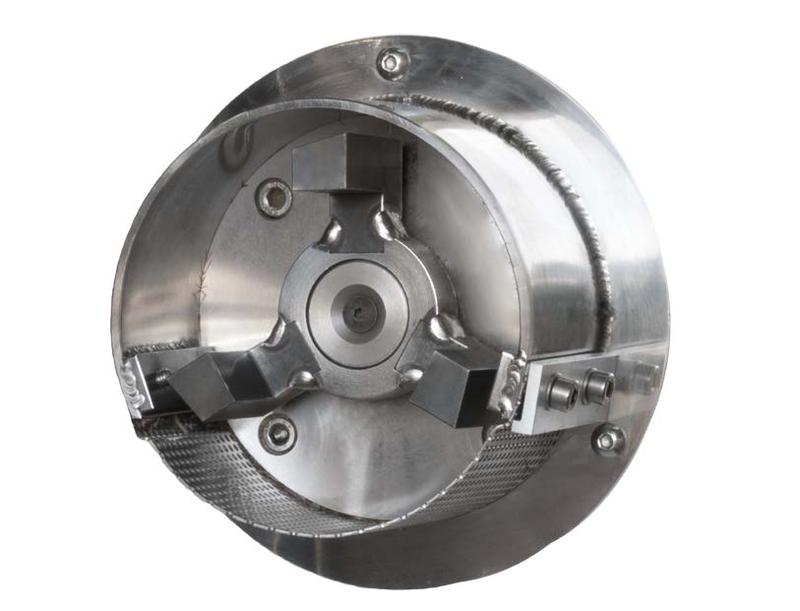

It comprises of three long-lasting blades manufactured from stainless steel, and an interchangeable screen with round perforations from 1 to 5 mm of diameter.

Frontal and loading hopper manufactured from mirror-polished
AISI-304 stainless steel.
TECHNICAL FEATURES
Speed: 3000 rpm
Grinding chamber volume: 0.4 l
Collector capacity: 1l
Sieve sizes (ø mm): 1, 2, 3, 4, 5.
Maximum particle feed size: 15 mm.
Voltage: 220/240 V - 50/60 Hz.
Power: 1.1 kW.
Weight: 38 kg.
Hammer grinding mill designed for the milling of a great variety of solid products: wheat, plastics, resins, minerals, vegetable matter, etc...

Designed for laboratories in the food, chemicals, pharmaceuticals and ceramics industries.

The drum, together with the anti-wear stainless steel blades, allow the fast milling of a multitude of semi-hard and hard products with an input particle size of + or - 20 mm.

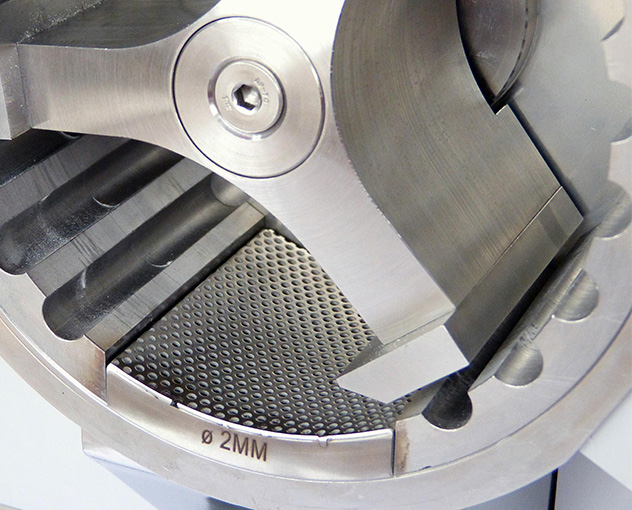

The screens have round perforations, ranging from Ø 0.5 to 5 mm. The screen is easily changed, which optimizes the equipment preparation time.

The ring gear and hammers are manufactured from AISI-431 stainless steel tempered.
It incorporates a frequency converter which allows the starting and stopping of the motor without sudden movements.

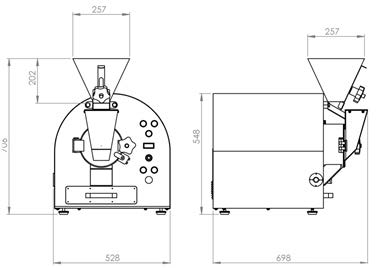

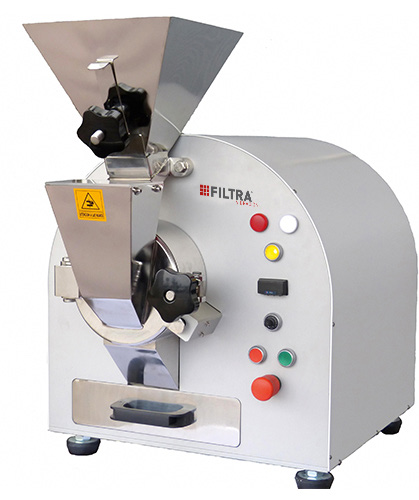

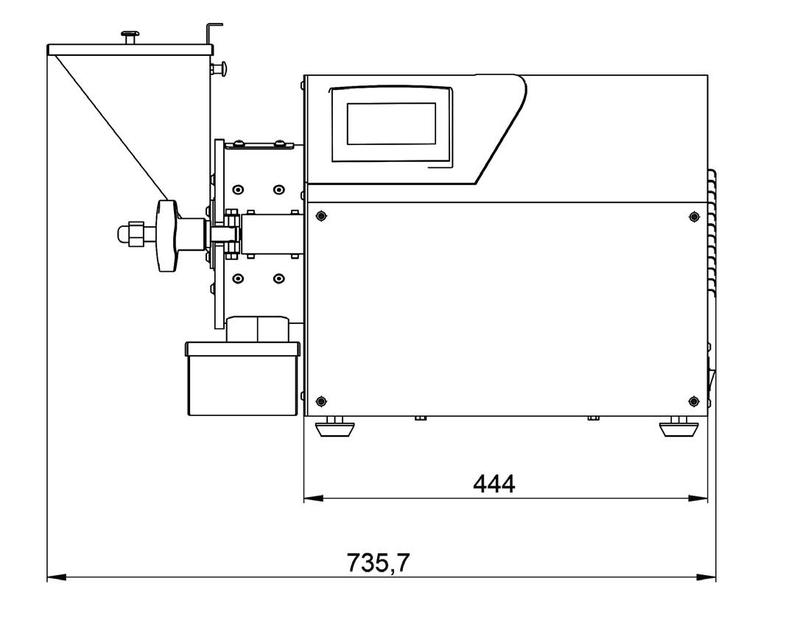

FML 2000 LABORATORY MILL
TECHNICAL FEATURES
Speed: 3000 rpm
Grinding chamber volume: : 1.2 l
Collector capacity: 2 l
Sieve sizes (mm):
0.5, 0.8, 1, 1.5, 2, 2.5, 3, 4, 5, 6.
Maximum particle feed size: 20 mm.
Voltage: 220/240 V - 50/60 Hz.
Power: 1.5 kW.
Weight: 55 kg.

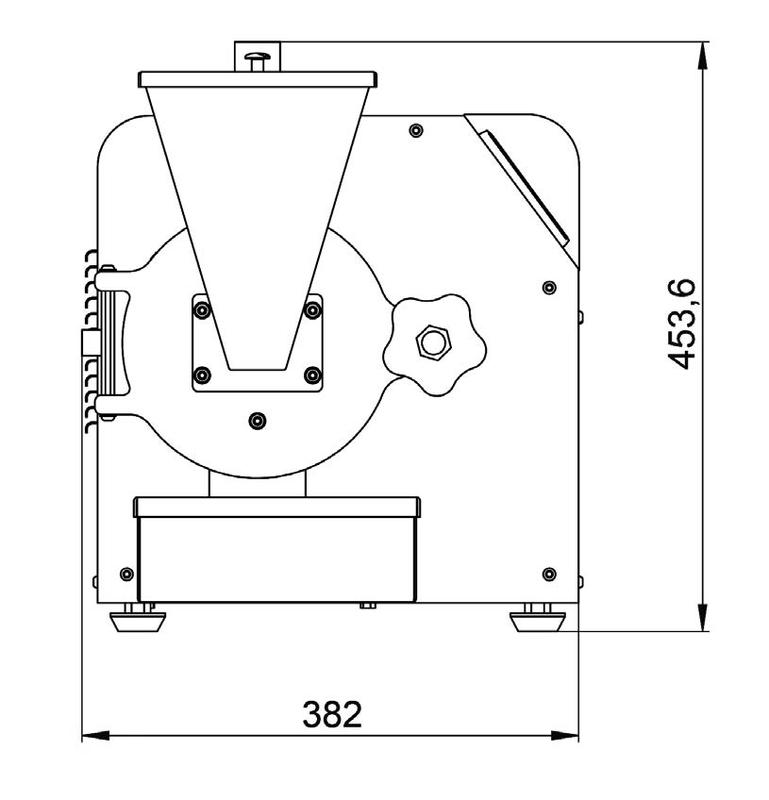

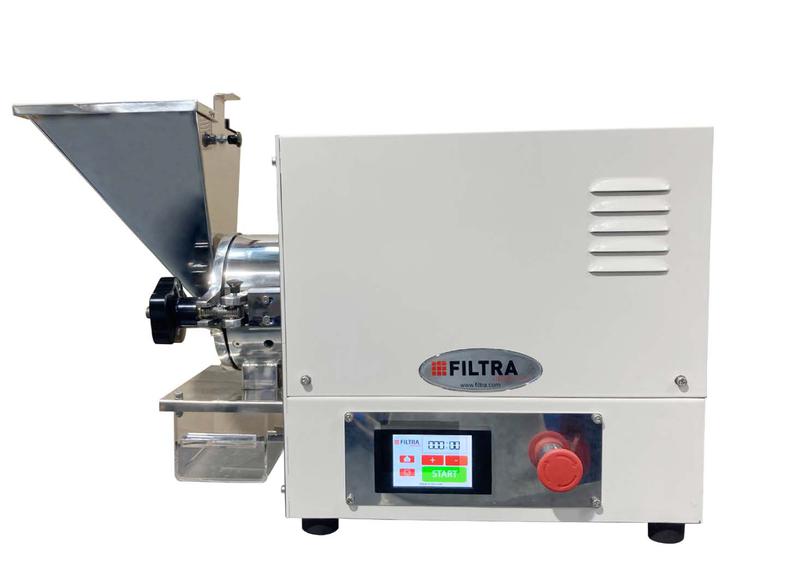

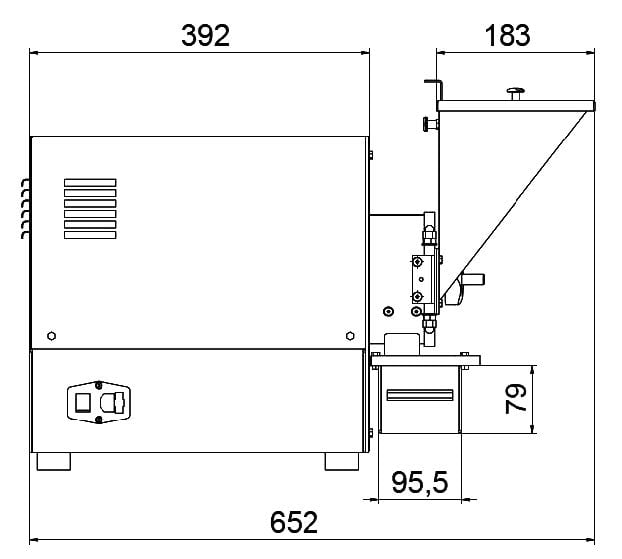

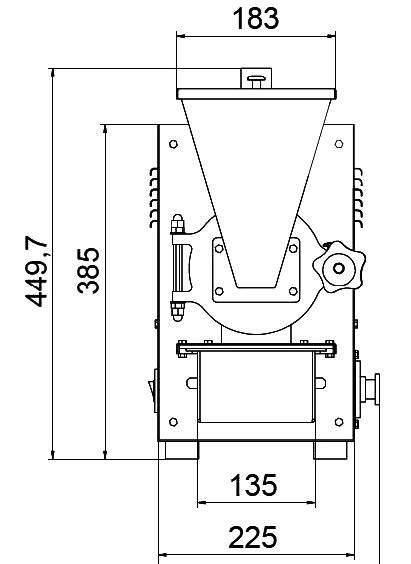

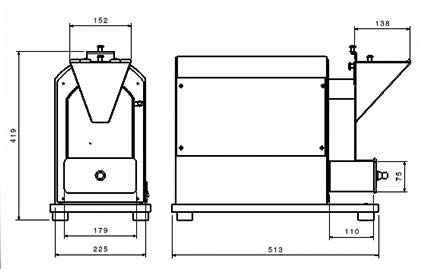

FML 0100 LABORATORY MILL
AISI-304 stainless steel.
LABORATORY GRINDING MILL
INCLUDES:
FML-0100
Hammer grinding mill
Connecting cable
Tray of methacrylate
User manual
CE declaration of conformity
LABORATORY GRINDING MILL INCLUDES:
FML-2000 Hammer grinding mill
Connecting cable
Tray of methacrylate
User manual
CE declaration of conformity
QUICK QUOTE
BROCHURE
QUICK QUOTE
BROCHURE
ONLINE PRICING
google70969e69c9325916.html

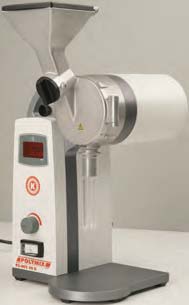

KINEMATICA DUAL MODE HAMMER / BLADE MILL
HAMMER MILL ATTACHMENT
BLADE MILL ATTACHMENT
QUICK QUOTE
BROCHURE
SPECIFICATIONS

Motor Type, Power 3-phase AC Motor
up to 1000 W (input) / up to 600 W (output)
Working volume (funnel) approx. 300 ml (volume of the funnel)
Display LED
Supply Voltage 230V / 50 Hz or 100-120V / 60 Hz
Speed range 50 - 6‘000 rpm
Noise emission (drive only) < 70 dB(A) bei 6‘000 rpm (w/o load)
Ambient condition 0 - 40°C, max. 95% rel. humidity
Protection class IP 20
Dimensions / Weight (drive) 251 x 325 x 480 mm (LxBxH) / ca. 12 kg
Standards EMC according IEC/EN 61000-6-2 / EN 61000-6-3
Safety according IEC/EN 61010-2-51
• 500% more power (1000 W, 3-phase motor) than former model PX-MFC
• Speeds up to 6’000 rpm
• Low noise level due to brushless 3-phase AC motor
• Integrated speed control with LED-display for speed indication and status messages
• Integrated overheating, overload and blocking protection
• Safety switch for automatic-Off
• Energy saving through automatic Standby-mode
• Milling chamber with attached funnel and rotary slide for product inlet dosage; intercepting
  tubes and NS29 vessels can be attached to milling chamber outlet
• Milling chamber can be equipped with hammer grinding or blade grinding attachment
• Milling chamber can be equipped with sieves in different mesh sizes from 0.2 up to 6 mm
• Milling chamber parts in contact with the product made from stainless steel hardened
• Base frame made from anodized aluminum with integrated handle

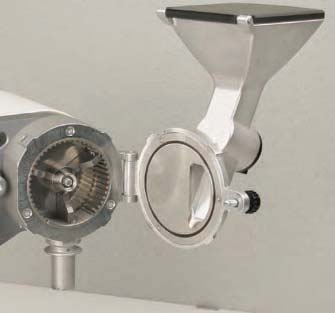

Milling chamber with Safety switch,
funnel, lid, rotary slide for product
dosage and NS29 adapter for intercepting tubes
