DISPOSABLE POWDER SAMPLERS

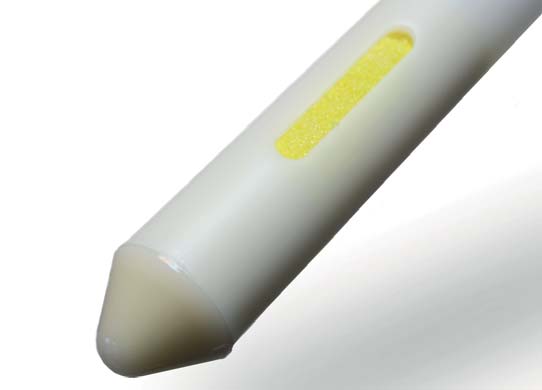

Disposable Powder Sampler
Large Volume, single use powder sampler

The disposable Powder Sampler is ideal for taking a single large volume sample from a single known point.
• Assembled & Packed in a Cleanroom
• Individually Bagged
• FDA & EU 10/2011 Conforming Materials
• BSE/TSE Free
• Full Batch Traceability
• ATEX Rated
• Available Sterile (gamma irradiated)
1           2              3
4
5
Part No.                Overall Length     Volume     Outer Diameter     Material      Quantity per Box

675 8240H1000    1000 mm              100 ml       40 mm                  HDPE            20

675 8240H1000S  1000 mm              100 ml       40 mm                  HDPE            20 STERILIZED
Why Use a Disposable Sampler?
Cross-contamination risk is eliminated - the device can be used  straight from the bag
No cleaning is required before or after sampling
No cleaning validation (this is very expensive to set up and run)
Most devices are manufactured in a class 100,000 cleanroom environment
Peace of mind
Suitable for all industries (pharmaceutical, food, chemical, cosmetic, biotechnology etc.)
Financial
Save time and money (it will cost more to clean a reusable sampler than to buy a disposable sampler)
​Operation

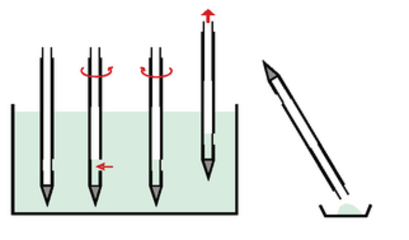

The disposable Powder Sampler is quick and easy to use:
1. Push the sampler into the product
2. Rotate handle to open up slots
3. After leaving the sampler for several seconds to allow
    powder to enter, rotate handle to close the sampler.
4. Remove sampler
5. Deposit the sample into a suitable container
Operation

1. Insert the sampler to the required depth.

2. Squeeze handle which pushes the cup away from the lid, allowing the liquid to enter the cup.

3. After filling, remove the sampler. To empty the sampler either tip the sampler
    while squeezing the handle or unscrew the collecting cup.
