HAND OR FOOT OPERATED LIQUID PUMP SAMPLER
BUY ONLINE
Email Address
First Name
Company Name
Last Name
Delivery Address
Address Line 2
Ship To Postal Code
Telephone
QUICK QUOTE
ADD BILL TO INFORMATION
Email Address
First Name
Company Name
Last Name
Billing Address
Address Line 2
Bill To Postal Code
Telephone
SPECIAL INSTRUCTIONS
BILL TO SAME A SHIP TO
​HAND OPERATED PUMPS

Stock No.   Tube Diameter    Max Length of Dip         Tube Material Capacity

675 5056A18       18 mm                            700 mm    Rigid PP                 26 L/min

675 5056A12       12 mm                            700 mm    Rigid PP                 14 L/min

675 5056B16       16 mm                            700 mm    Rigid PVDF            20 L/min

FOOT OPERATED PUMPS

Stock No.   Tube Diameter   Max Length of Dip          Tube Material  Capacity

675 5058A22       22 mm                            900 mm    Rigid PP                  30 L/min

675 5058B16       16 mm                            700 mm    Rigid PVDF            20 L/min

675 5058C18       18 mm                            900 mm    304 Stnls Stl           26 L/min

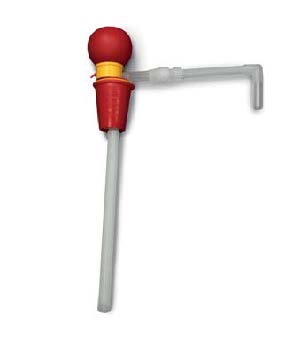

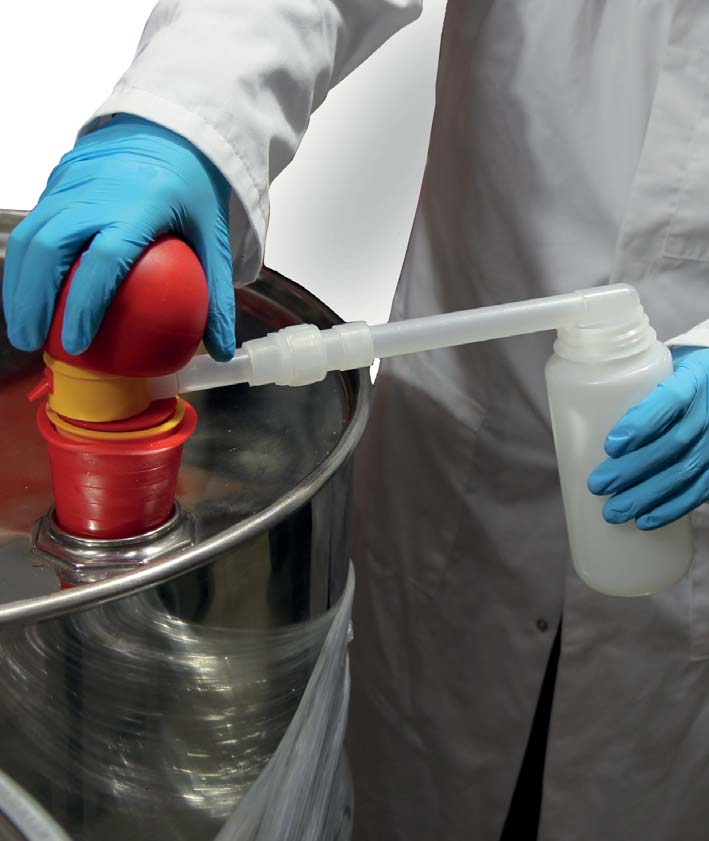

The Easy Pump Range is ideal for many laboratory applications where small to
medium quantities of liquid need to be pumped. Easy pumps are available either
hand or foot operated.

Each pump is supplied with a Universal Bung - this allows the pump to be used with
any container which has a round opening between 30 and 70mm.
These pumps are designed to be easy to install, easy to use and easy to clean.
