18 inch sieve shaker panel
                          Power LED
                             Run LED
 Adjustable Mounting Bracket
     Key Operated Safety Lock
                          Start Button
                                   Timer
                         Stop Button

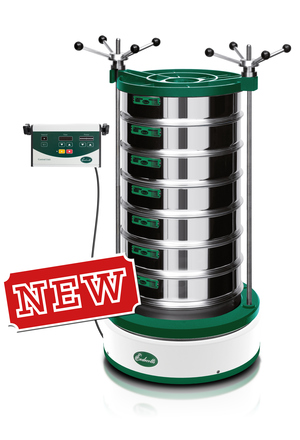

ENDECOTTS D450 SIEVE SHAKER
600 T450 TITAN
ENDECOTTS T450 TITAN SIEVE SHAKER
(WET AND DRY SIEVING WITH UP TO 18" SIEVES)
18
18" Sieves give comparable results to electroformed sieves
By utilizing the same dynamic control panel as the D200, the D450 offers outstanding control features. This complete vibration system has been built to handle the sample weights involved with larger diameter sieves, eliminating the problems involved with lighter weight machines.
•Total operator control
•Easily set to maximum efficiency
•Economical
•No mechanical moving parts
•Suitable for wet or dry sieving

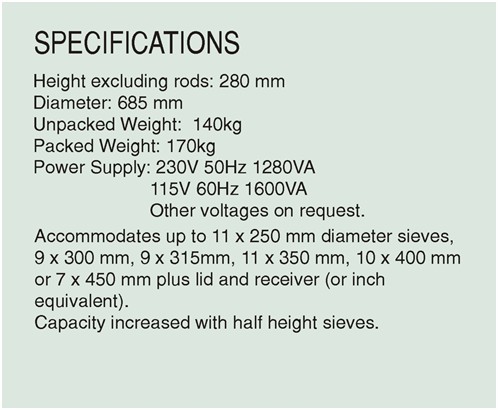

18 inch sieve shaker panel specifications
endecotts 18 inch sieve shakerwet sieve kit
When sieving certain types of media, such as slurries, it has been found more efficient to utilise the Wet Sieving Method. In order to use this method it is necessary to obtain a Wet Sieving Adaptor Kit which is suitable for the shaker and diameter of sieves intended to be used and comprises:-

1 - Special Wet Sieving Clamp Plate
1 - Set of 'O' Ring Seals
1 - Special Wet Sieving Receiver (supplied with
     additional standard receiver)
1 - Nylon Hose tail

WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]
BROCHURE
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone   (804) 318-3686
Toll Free US (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
18 inch sieve shaker
T450 OPERATING INSTRUCTIONS
18 inch sieve shaker
ONLINE PRICING
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
QUICK QUOTE
SIEVE QUOTE
anti vibration feet
sieve shaker clamping mechanism
sieve shaker strap
endecotts sieve shaker control panel
Anti-Vibration Feet maintain optimum
performance and avoid shaker ‘walking’.
Endecotts shakers are fitted with a
unique clamping device, enabling the
clamp plate to be fitted in seconds. It
also ensures the clamp plate secures
the sieves with consistent pressure to
provide consistent results and longer
sieve life.
Most Endecotts shakers are fitted
with a high degree of control over all
shaker functions - a feature extremely
useful for many materials and in many
industries.
Anti-Vibration Feet
Unique Clamping
Extensive Control
