INLINE POWDER SAMPLER
MANUAL OPERATION
Freeglide POWDER SAMPLER INLINE Manually Operated
INLINE POWDER SAMPLER MANUAL OPERATION
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
MATERIALS OF CONSTRUCTION
Contact parts: - 316 stainless steel
- PTFE
- Silicone rubber, Viton or EPDM
- Other materials on request
Non contact parts: - 304 grade stainless steel
- Other materials as required.
The manual inline sampler is specially designed and engineered so that powder is kept out of the
bearings by a special flexible membrane - this means the sampler will not jam
The sample is collected in a cup and so is not physically altered by the sampling process
When the sampling cup is retracted the full bore of the downpipe is available for powder flow
The manual inline sampler is made from FDA acceptable materials and is easy to strip down for cleaning
INLINE POWDER SAMPLER
MANUAL OPERATION
PIPE DIAMETER 100mm to 300mm
675 FG (xxx m/a)
EQUIPMENT FOR QUALITY CONTROL AND R&D
Telephone (804) 318-3686
Toll Free US (866) 244 1578
Fax (703) 991-7133
Hours 8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT
DELIVERIES WORLDWIDE
PERFORMANCE GUARANTEE

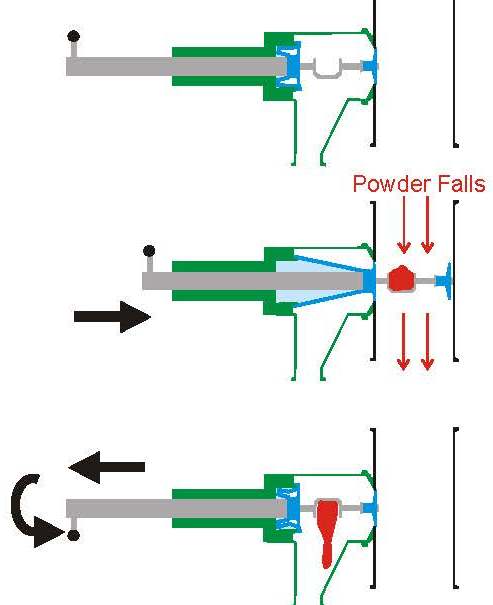

OPERATION
Resting
When the FreeGlide® is not in use the full bore of the downpipe is
available for powder flow.
Sampling
The sampling cup is extended into the downpipe to catch the
product as it falls.
Discharging
The sampling cup is then retracted and inverted. The powder
sample falls down the discharge chute to where it is collected

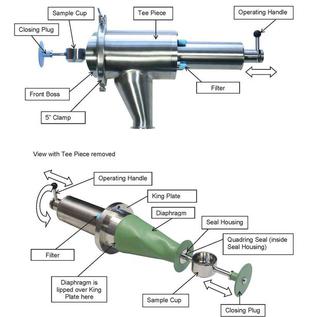

MANUAL FREEGLIDE COMPONENTS
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES FOR
ANALYTICAL INSTRUMENTATION
TELEPHONE (804) 318-3686
TOLL FREE (866) 244-1578
COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
"The general consensus is that only sampling
from a bulk powder while it is in motion can
yield the desired representative sample."
The blanking plate is a 316 SS Plate that
fits in to the front boss, while the sampler
is being serviced. Two styles are available

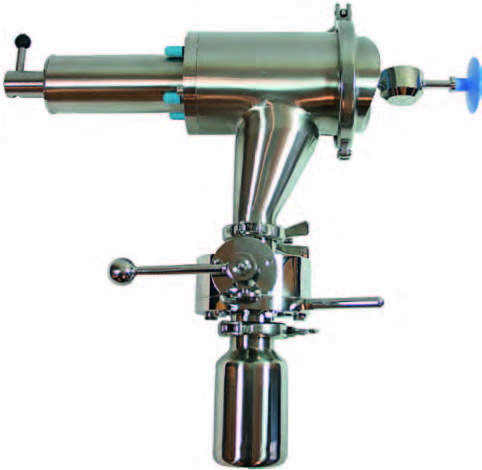

HIGH CONTAINMENT OPTION
Split Butterfly Valve DiscLock™
ChargePoint containment split butterfly valve with patented DiscLock™ feature offers the highest levels of dust particulate control when transferring large volumes of bulk powder materials.
The ChargePoint® DiscLock™ powder transfer system ensures operator safety and a reduced risk of cross contamination while handling non-sterile chemical, pharmaceutical API and formulation ingredients with validated levels of containment performance.
