FUNNELS FOR POWDERS AND LIQUIDS
• 316 stainless steel
• Satin finish

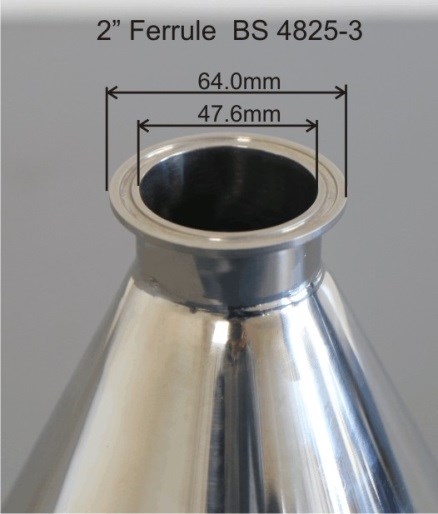

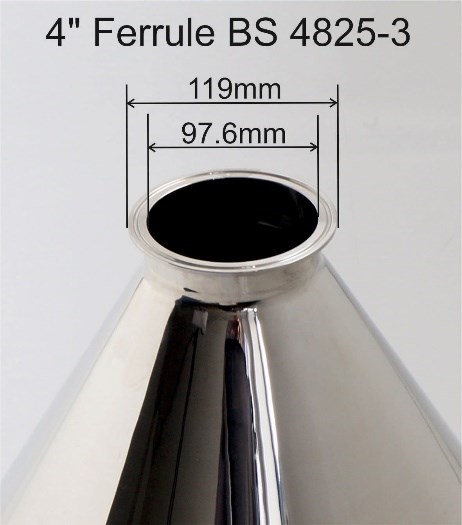

  Tri ferrule fitting at spout base

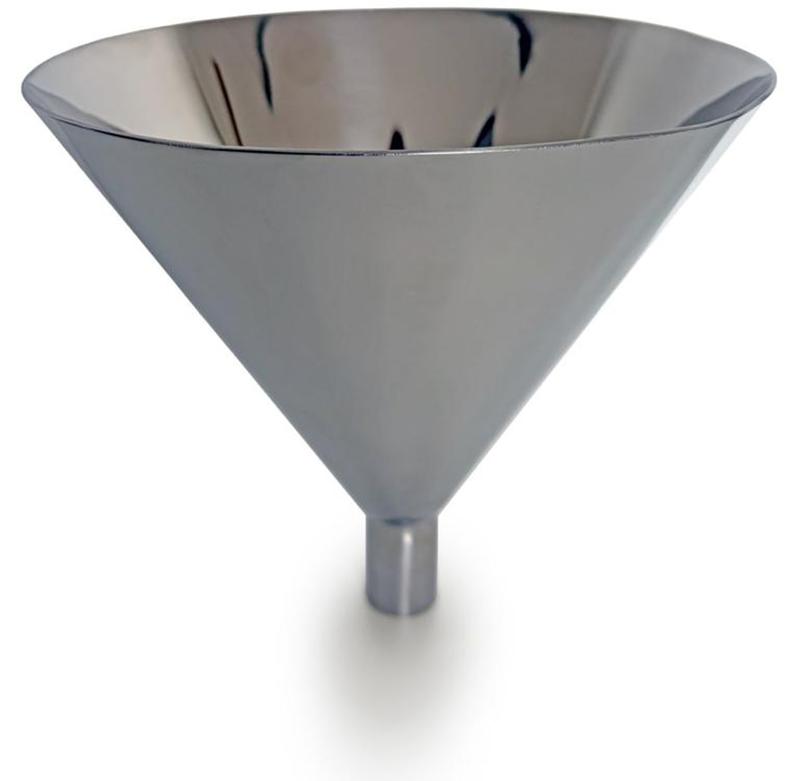

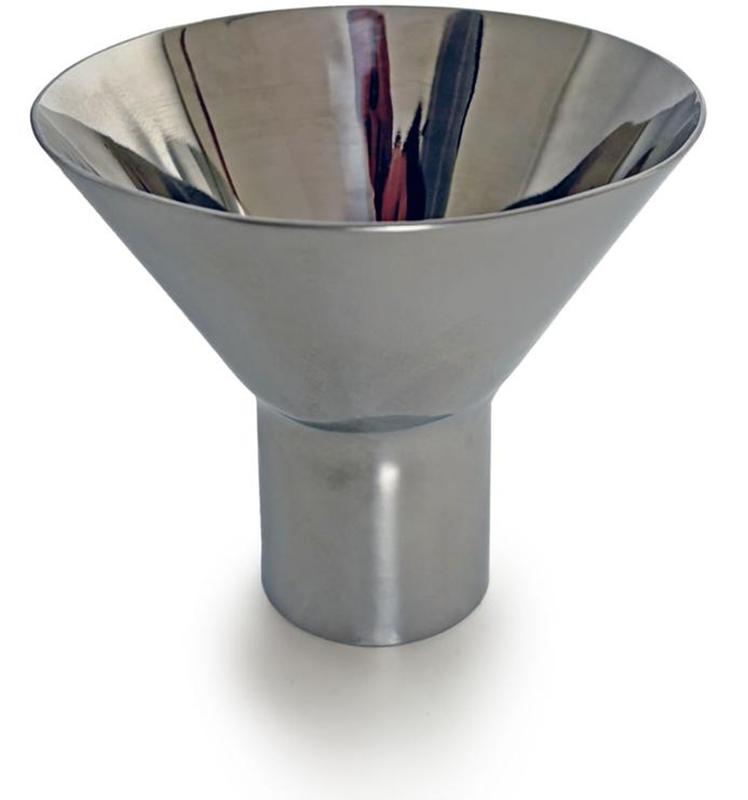

POWDER FUNNELS STAINLESS STEEL
Part No.            Top Diameter      Spout Diameter

675 A716100       100 mm              38 mm

675 A716200       200 mm              38 mm

675 A716300       300 mm              50 mm
DISPOSABLE POWDER FUNNELS

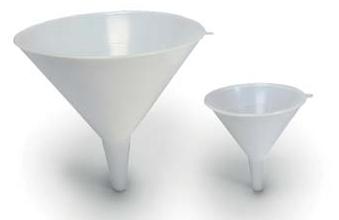

The new disposable Powder Funnel is ideal for transferring
powders. Available both sterile and non sterile. Made from
chemically resistant food grade plastic.

• Individually bagged
• FDA and EC conforming material
• Cleanroom manufacture and packing (ensures cleanliness)
• Available from stock for fast delivery worldwide
Part No.                  Top Diameter           Spout Diameter        Pre-Sterilized    Material           QTY

675 8111H200           200 mm                   40 mm                      No                      HDPE                10

675 8111H200S         200 mm                  40 mm                       Yes                    HDPE                 10
POWDER FUNNELS PP

• Ideal for loading powder into drums, containers or kegs
• Crevice Fee
Part No.                        Top Diameter           Outlet Diameter                    Material

675 8023H200                 200 mm                      40 mm                                HDPE

675 8023P80                    80 mm                        23 mm                                PP

675 8023P100                100 mm                        26 mm                                PP

675 8023P150                150 mm                        30 mm                                PP

675 8023P250                250 mm                        50 mm                                PP

675 8023P350                350 mm                        65 mm                                PP
DISPOSABLE HDPE FUNNEL

• Molded & Packed in a Cleanroom
• Individually Bagged
• FDA & EU 10/2011 Conforming Materials
• BSE/TSE Free
• Full Batch Traceability
• Available Sterile (gamma irradiated)
Part No.             Top Diameter          Spout Diameter  Height    Pre-Sterilized   Material         Qty

675 8370H100    100 mm                    12 mm           125 mm       No                      HDPE            100

675 8370H100S 100 mm                     12 mm           125 mm       Yes                    HDPE            100

675 8370H200    200 mm                     12 mm          180 mm        No                     HDPE              20

675 8370H200S 200 mm                     12 mm           180 mm        Yes                   HDPE              10

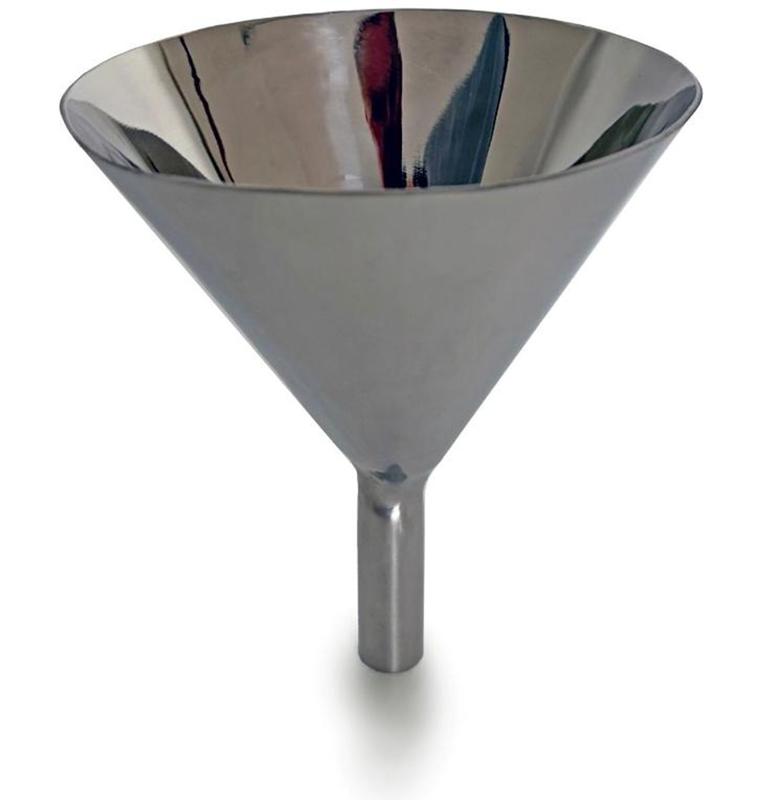

LIQUID FUNNELS STAINLESS STEEL
Part No.              Top Diameter                  Spout Diameter                  Height             Material

675 A24450         50 mm                              8 mm (NOT FLUTED)         65 mm           STAINLESS STEEL

675 A244100     100 mm                             12 mm                                 120 mm          STAINLESS STEEL

675 A244120     120 mm                             12 mm                                 140 mm          STAINLESS STEEL

675 A244150     150 mm                             12 mm                                 160 mm          STAINLESS STEEL

675 A244200     200 mm                             20 mm                                 200 mm          STAINLESS STEEL

675 A244250     250 mm                             20 mm                                 325 mm          STAINLESS STEEL

675 A244310     310 mm                             20 mm                                 325 mm          STAINLESS STEEL
QAQC LAB Stainless steel funnels are ideal for use with a wide range of liquids. The funnels have a fluted spout to help have a smooth pouring action.


• 304 stainless steel
• Satin finish
• Fluted spout to aid product discharge
• PP construction
• Crevice Fee
QUICK QUOTE
BROCHURE
BUY ONLINE
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
​BLUE NOW AVAILABLE
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
google70969e69c9325916.html
Height

107 mm

230 mm

300 mm
Part No.            Top Diameter         Spout Diameter                Material                        QTY

675 8022P40       40 mm                                                          POLYPROPYLENE        10

675 8022P50       50 mm                   8 mm                              POLYPROPYLENE        10

675 8022P100   100 mm                  10 mm                             POLYPROPYLENE        10

675 8022P200   200 mm                  25 mm                             POLYPROPYLENE        10

675 8022P350   350 mm                  52 mm                             POLYPROPYLENE          1

675 8022P450   450 mm                                                          POLYPROPYLENE           1

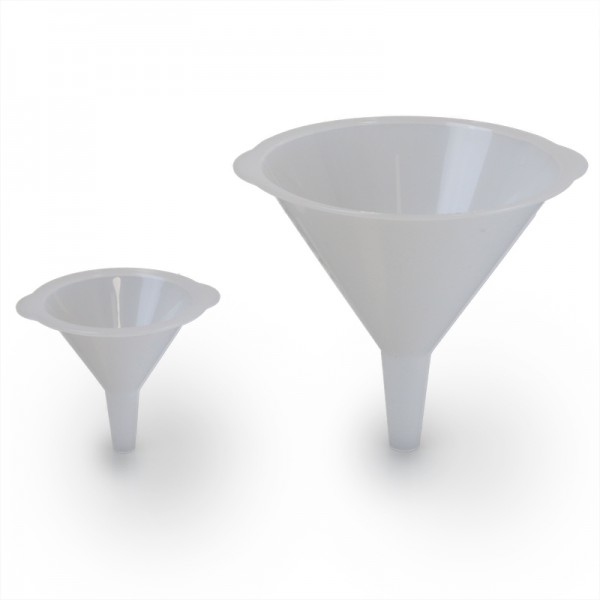

Our reusable liquid funnels are made from chemically resistant PP. They are ideal for general purpose factory, laboratory and production work.

They are available in 3 handy sizes with a 50,100 and 200mm diameters. The spout design means they are perfect for liquids. For thick creams and powders please use our powder funnel range.
LIQUID FUNNELS PP
Part No.             Top Diameter        Spout Diameter                   Height              Material     QTY

675 A10530        30 mm                    8 mm                                   50 mm               PTFE        10

675 A10550        50 mm                  10 mm                                   85 mm              PTFE         10

675 A10570        70 mm                   12 mm                                 110 mm              PTFE        10

675 A10510     100 mm                    14 mm                                 170 mm              PTFE        10

675 A105150   150 mm                    16 mm                                 220 mm              PTFE        10

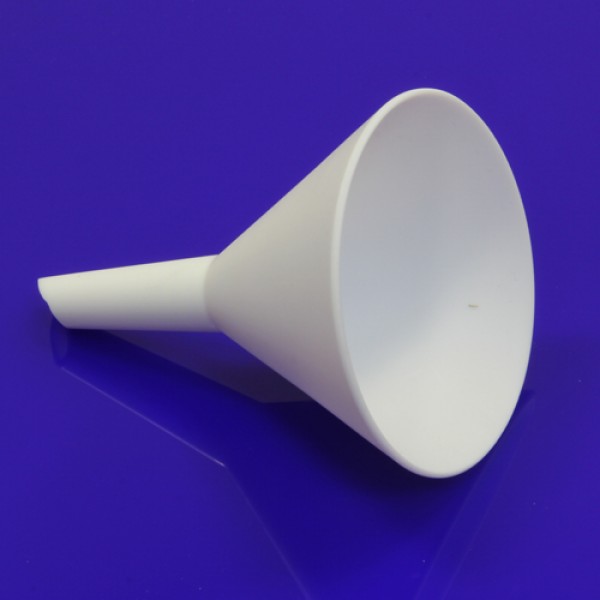

The PTFE Funnel is ideal for general laboratory use as it has excellent resistance to chemical attack. Virgin PTFE that conforms to FDA and USP Class VI requirements is used in the manufacture of these funnels.
LIQUID FUNNELS PTFE
SPECIFICATIONS
