EQUIPMENT FOR QUALITY CONTROL AND R&D
CORE SAMPLERS FOR ICE , WAX , AND ICE CREAM
• Suitable for sampling ice, wax and other similar materials
• Single point sampler
• Made from 316 stainless steel
Operation:

1. Rotate the handle as the sampler is pushed into the product.
    The scroll will cut into the product and the sample will be
    deposited in the sample collecting chamber.

2. Removing the cylinder allows the sample to be accessed.
Part No.                Length             Sample Volume       Diameter of Sampling head

675 6000A300      300 mm           50 ml                        40 mm

675 6000A550      550 mm           50 ml                        40 mm

675 6000A1050   1050 mm          50 ml                        40 mm
STANDARD CORE SAMPLER
Manufactured from chemically resistant 316 stainless steel.

• Fits all standard electric drills (drill not supplied)
• Takes samples in seconds
• Wide diameter for large cross sectional sample
• Available from stock
• Supplied with ejection rod

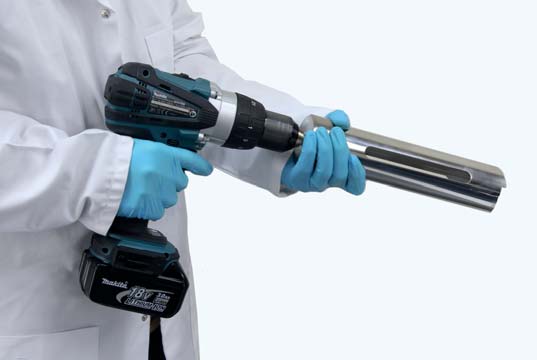

POWER ICE SAMPLER
Part No.              Description                                                              Length        Diameter        Material

675 6010A240   Powered Ice sampler with discharge rod      240 mm      50 mm            316 Stainless Steel
• Suitable for sampling ice, wax and other similar materials
• Single point sampler
• Made from 316 stainless steel

Operation:

1. Rotate the handle as the sampler is pushed into the product.
    The scroll will cut into the product and the sample will be
    deposited in the sample collecting chamber.

2. Removing the cylinder allows the sample to be accessed.

• Suitable for ice, wax and other similar materials
• Made from 316 stainless steel

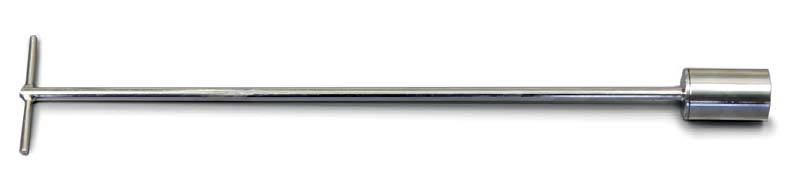

ICE BORER
Part No.           Description                                  Length                   Outer Diameter

675 6005A500    Ice Borer                                 500 mm                   25 mm

675 6005A1000  Ice Borer                              1000 mm                   25 mm

675 8570A700    Sample Discharge Rod       700 mm                   18 mm

675 8570A1100   Sample Discharge Rod    1100 mm                   18 mm
QTY

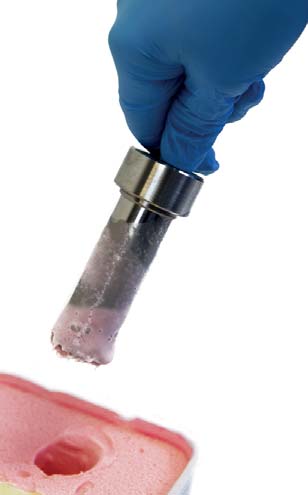

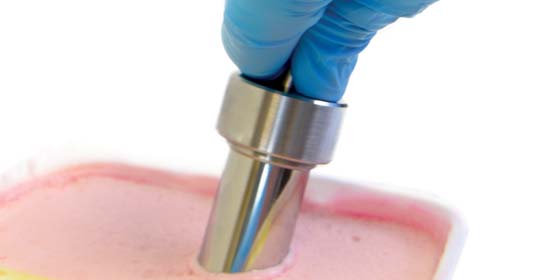

The Ice Cream Sampler is ideal for sampling products like ice cream and soft waxes.
All stainless steel construction and is designed to be easily dismantled for cleaning.

BUY ONLINE
Part No.                   Diameter         Sample Volume     Material

675 6006A100         25 mm             30 ml                        316 stainless steel with clear polystyrene test tube

675 6006A101         Test Tube made from clear polystyrene (PS)

675 8020J600          Cleaning Brush
QTY
STANDARD CORE SAMPLER
POWER ICE SAMPLER
ICE BORER
ICE CREAM SAMPLER

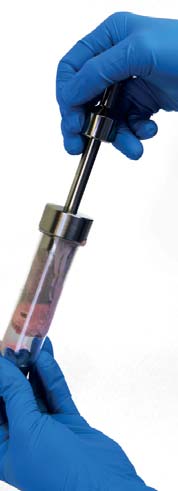

The Ice Cream Sampler has an all stainless steel construction and
is designed to be easily dismantled for cleaning. The sampler comes
complete with a test tube for putting the sample into.
