Jumbo Pipettes (HDPE)
Low Cost Disposable Liquid Samplers
Jumbo Pipettes are quick and easy to use.

They are ideal for taking samples from low viscosity liquids.

• Assembled & Packed in a Cleanroom
• Individually Bagged
• FDA & EU 10/2011Conforming Materials
• BSE/TSE Free
• Full Batch Traceability
• ATEX Rated (450mm and 900 mm)
• Available Sterile (gamma irradiated)
JUMBO PIPETTES
LOW COST LIQUID SAMPLERS

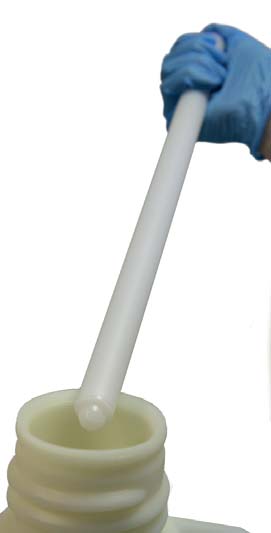

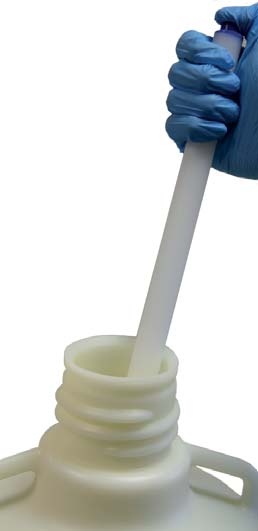

Operation

1. Press thumb onto tube until you are at the correct
    sampling depth

2. Raise thumb until levels equalize

3. Press thumb onto tube to seal in the sample
    The deeper the sampler is pushed into the liquid the
    larger the sample volume
PART NO.          LENGTH   DIAMETER    ID           PRE-STERILIZED   MAX SAMPLE VOLUME

675 8051H450       450 mm     21 mm          17 mm      No                          80 ml

675 8051H450S     450 mm     21 mm         17 mm      Yes                          80 ml

675 8051H900       900 mm     21 mm          17 mm      No                        180 ml

675 8051H900S     900 mm     21 mm         17 mm      Yes                        180 ml

675 8051H1100    1100 mm     21 mm         17 mm       No                         225 ml

675 8051H1100S  1100 mm     21 mm        17 mm       Yes                        225 ml
450 mm
900 mm
