DISPOSABLE LIQUIDIPPER
SELF CLOSING CROSS SECTIONAL AND SINGLE POINT LIQUID SAMPLERS
PART NO.                CAPACITY            PRE-STERILIZED     LENGTH    UNITS PER BOX
BUY ONLINE
675 8920H450          80  ml                     No                           450 mm       20

675 8920H450S       80  ml                     Yes                          450 mm       20

675 8920H1100      225 ml                      No                          1100 mm       20

675 8920H1100S    225 ml                     Yes                         1100 mm       20
QUOTE REQUEST HDPE LIQUIDIP DUO FOR CROSS SECTIONAL AND POINT SAMPLING
QTY
PART NO.                CAPACITY           PRE-STERILIZED   LENGTH       UNITS PER BOX
675 8921H450         80  ml                     No                           450 mm         20

675 8921H450S      80  ml                     Yes                          450 mm         20

675 8921H1100      225 ml                     Yes                          1100 mm       20

675 8921H1100S   225 ml                      Yes                          1100 mm       20
The LiquiDip Mono is ideal for taking cross sectional samples.

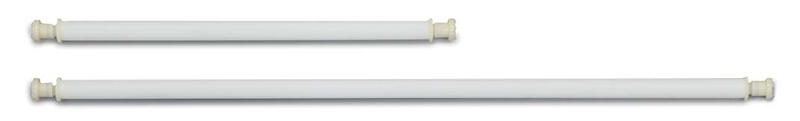

The LiquiDipper Duo is ideal for cross sectional and point sampling.

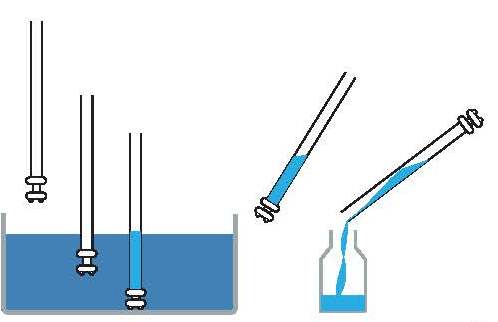

    OPERATION
1. Simply push into your container until it
    reaches the bottom.
2. Push sampler against the container base
    to close the valve.
3. Remove sampler and pour out.
Point Sampling -
1. Close the top valve.
2. Push sampler into the liquid to the point required.
3. Open top valve and let liquid fl ow in.
4. Close top valve and remove sampler

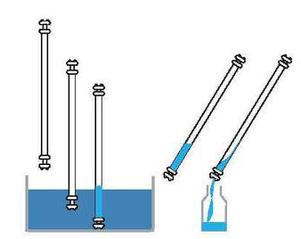

​Cross Sectional Sampling -
1. Ensure the top and bottom valves are open
2. Push sampler into the container until it reaches the bottom.
3. Push sampler against the container base to close the valve.
4. Close top valve with hand to ensure liquid is trapped inside

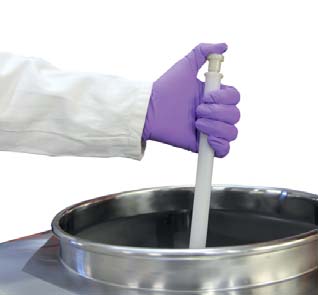

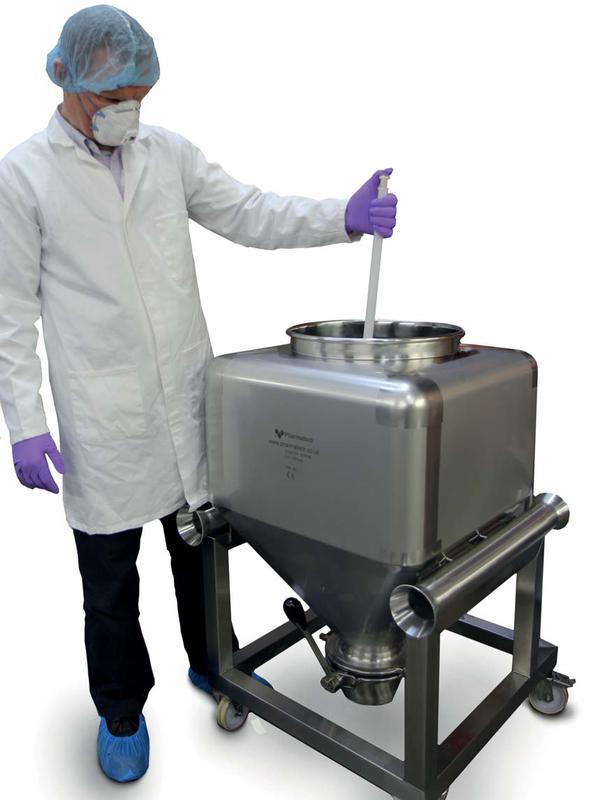

The new LiquiDipper sampler is ideal for taking cross sectional or point samples of liquids.

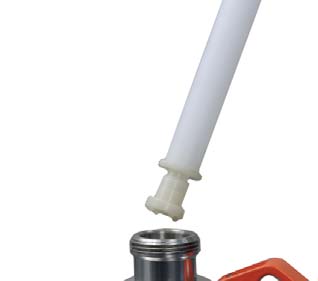

The valve on the base of the sampler automatically closes when it is pushed against the bottom of the container.

• Individually bagged
• FDA and EU 10/2011 conforming material
• Cleanroom assembly and packing (ensures cleanliness)
• Available both sterile and non sterile
• Available from stock for fast delivery worldwide
• The LiquiDip Duo can be used as a transport container when both valves are closed.
