Operation

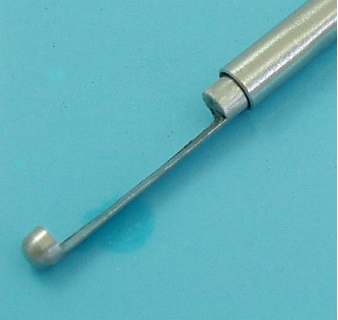

1. Insert the sampler into the product, ensure that the tip is
inside the sampler body.
2. At the required depth pull up the body to expose the tip.
Powder will fl ow in around the tip.
3. Push down body of the sampler to trap the sample.
4. Withdraw sampler.
5. Pull up body to release the sample.
Nominal Sample Volume Max. Sampling Depth Material Diameter
Variable between 10 uL and 100 uL 350 mm 316 ss 5 mm
Variable between 10 uL and 100 uL 500 mm 316 ss 5 mm

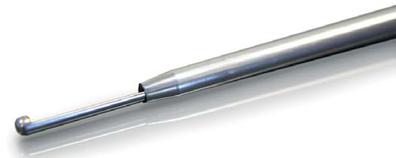

The MicroThief is suitable for taking very small volume samples of free flowing powders and granules.
It is easily adjusted so that the operator can vary the size of the sample being taken.
