FC200S AUTOMATIC PARTICLE CHARACTERISTIC ANALYZER FOR LIQUIDS AND SUSPENSIONS WITH A SPECIALLY DESIGNED SYRINGE PUMP FOR APPLICATIONS WHERE VERY PRECISE SAMPLING IS REQUIRED.

PARTICLE SIZE PARAMETERS: 200 nm TO 1 mm
STANDARD CAMERA RESOLUTION: 6.6 MILLION PIXELS
PIXEL SIZE: 3.5 MICRONS
HIGH RESOLUTION CAMERA:10 MILLION PIXELS
PIXEL SIZE: 1.67 MICRONS
THIS EASILY MAINTAINED PARALLEL SLIDE FLOWCELL, CAN BE ADJUSTED FROM 50 MICRONS TO 1 MILLIMETER, WITH SPECIAL SPACERS, TO ALLOW FOR THE ACCURATE ANALYSIS OF MATERIALS DOWN TO 200 nm IN SIZE, SUCH AS PROTEIN AGGREGATES.

EMULSIONS REQUIRE LITTLE OR NO DILUTION, DUE TO THE ABILITY TO SWAP OUT THE SPACER THICKNESS, RELATIVE TO THE PARTICLE SIZE.

syringe sampler
SPECIAL SYRINGE PUMP FOR PRECISE SAMPLING.

SYRINGE PUMPS AVAILABLE FOR
 .1 ml TO 2.5 ml SAMPLING

NEW! STAND ALONE MEMBRANE PUMP ADD ON MODULE AVAILABLE FOR FC200S
occhio flowcell

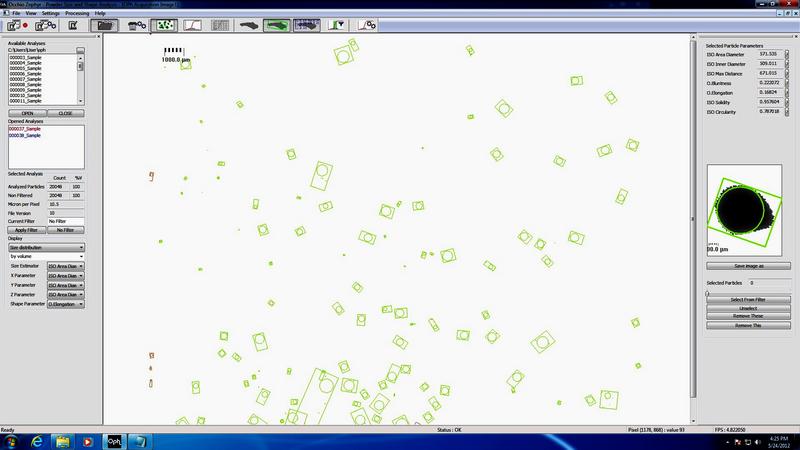

THE EASY TO USE CALLISTO SOFTWARE ALLOWS FOR ROBUST PARTICLE CHARACTERIZATION WITH THE CLICK OF A MOUSE, INCLUDING OVER 60 SIZE AND SHAPE ANALYSIS PARAMETERS
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone   (804) 318-3686
Toll Free US (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
occhio flowcell
PARTICLE CHARACTERIZATION USING DIGITAL IMAGE ANALYSIS
FC200S (SYRINGE PUMP) BROCHURE
FC 200S SYRINGE PUMP MODEL FOR
PRECISE SAMPLING APPLICATIONS 200 nm to 1 mm
NEW ADVANCES IN HIGH RESOLUTION IMAGING!
CALLISTO 3D SOFTWARE
FC 200S (SYRINGE PUMP)
THE FC200S IS PART OF A FAMILY OF HIGHLY SOPHISTICATED DIGITAL IMAGING SYSTEMS, THAT ARE BY PRODUCTS FROM A SERIES OF COLLABORATIVE STUDIES IN LIGHT, OPTICS, AND SAMPLE TRANSPORT, CARRIED OUT WITH THE COOPERATION OF THE UNIVERSITY DE LIEGE IN BELGIUM.
NEW HIGH RESOLUTION IMAGING TECHNOLOGY
This high resolution imaging technology, is accomplished in part, by using special backlighting techniques focused from behind the sample. An adjustable range, monochromatic, blue light source has been shown to provide optimal contrast conditions for the particles, and virtually eliminate diffraction. The light is collimated, and acts as a high definition caliper. In the case of liquids and suspensions, the light flashes simultaneously with a high speed, high definition camera, for extremely robust particle definitions.
telecentric lens image

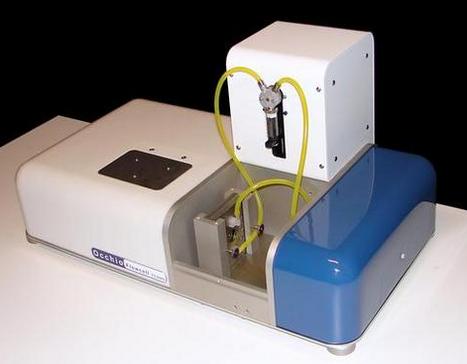

OCCHIO FC200S PARTICLE CHARACTERISTIC ANALYZER FOR PARTICLES SUSPENDED IN LIQUID
MONOCHROMATIC COLLIMATED BACKLIGHT ACTS LIKE A CALIPER, AND PROVIDES RESOLUTION UNATTAINABLE WITH WHITE LIGHT OR LASER DIFFRACTION
TELECENTRIC LENS- IMAGE MAGNIFICATION IS INDEPENDENT OF THE OBJECTS DISTANCE OR POSITION IN THE FIELD OF VIEW
telecentric lens image
FLOWCELL CLEANING PROCEDURE

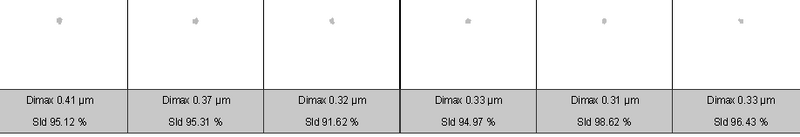

particle images
PARTICLE AGGREGATION AT 300 NM (CTRL + TO ZOOM PAGE)
Unique flowcell, with interchangeable spacers
allows for analysis of emulsions with little or no dilution
flowcell
Sample and rinsing solution can
be added by using a pipette,
with flowcell adapter
occhio flowcell
Unique flowcell has interchangeable field of depth spacers from 50 micron to 1 mm.
For emulsions and suspensions, little or no dilution is required.

Samples and rinsing solution  can be introduced by pipette or tubing.

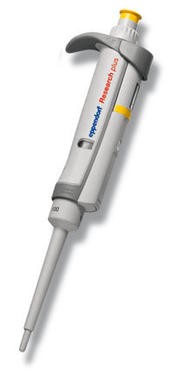

pipette
Use standard pipette to introduce sample
STATUS GAUGES



FULL REPORT CAPABILITIES

FULL VIDEO & IMAGE
RECORDING CAPABILITIES


NAVIGATION WHEEL
NEW ARMADILLO 3D INTUITIVE SOFTWARE WITH AI

ARMADILLO is software created and developed by the engineers at Occhio. Used in conjunction with any Occhio instrument, this software receives and deciphers the vast amounts of digital information which is supplied during microscopy analyses.

Certified to conform with ISO 9276-6 Norms, this software uses powerful
algorithms to interpret, characterize, and sort each particle independently. With over 60 evaluation tools, Callisto 3D allows the user to thoroughly review analysis results for thousands of different applications.
