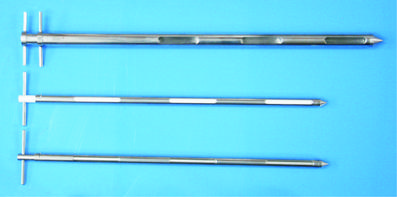

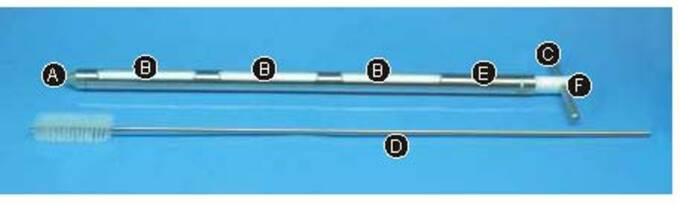

The  highly  popular  Pocket  Sampler  is  suitable for  taking  discrete samples  from  free  flowing powders  and  granules.  The  sampler  is available in a range of sizes and designs.
TYPE:              Multilevel (discrete / zone samples)

MATERIAL:     316 Stainless steel outer with a
                         PTFE Core or all 316 stainless steel                             construction
675-1220 Pocket Sampler

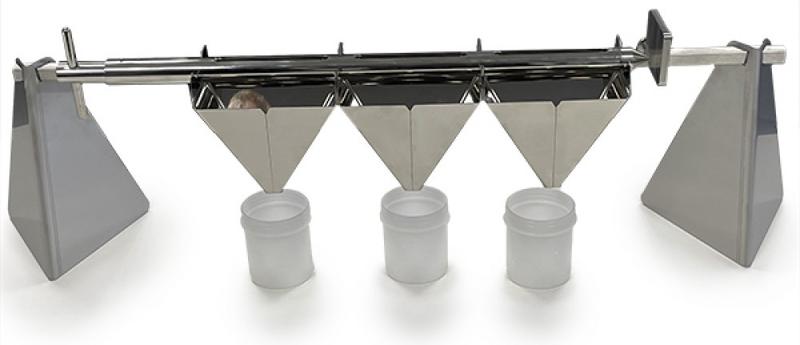

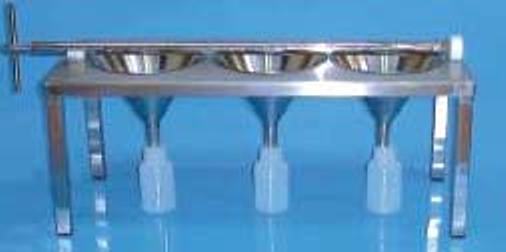

Or Optional Emptying Rack allows samples to be deposited directly
BUY ONLINE
QAQC LAB POCKET SAMPLER DISCRETE MULTI ZONE
POWDERS AND GRANULARS
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM

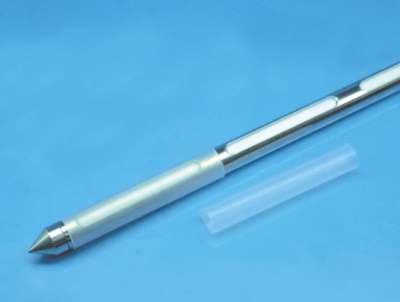

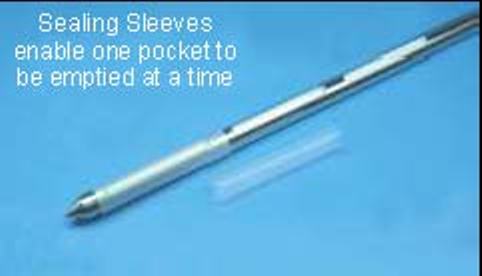

​SEALING SLEEVES ENABLE ONE POCKET TO BE EMPTIED AT A TIME. SIMPLY CLIP ON TO COVER.

EASY TO REMOVE

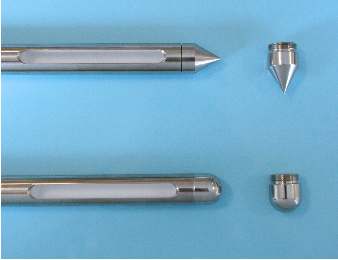

REMOVABLE POINTED TIP STANDARD
ROUNDED TIP AVAILABLE
BROCHURE
REF#                          DESCRIPTION

675 8005A01            Sealing Sleeve Set - Covers pockets - set of 3 sleeves (25 mm diameter)

675 8005A02            Sealing Sleeve Set - Covers pockets - set of 3 sleeves (40 mm diameter)


675 1220X600          Emptying rack for 600 mm sampler (25 mm diameter)

675 1220X900          Emptying rack for 900 mm sampler (25 mm diameter)

675 1220X1500        Emptying rack for 1500 mm sampler (25 mm diameter)


675 1220Y900           Emptying rack for 900 mm sampler (40 mm diameter)

675 1220Y1500         Emptying rack for 1500 mm sampler (40 mm diameter)

675 1220Y2000         Emptying rack for 2000 mm sampler (40 mm diameter)

LUG-1                           Earthing connection point.

Tip2 Round tip. (Sampler supplied with pointed tip). For 25 mm diameter samplers only
ACCESSORIES
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]

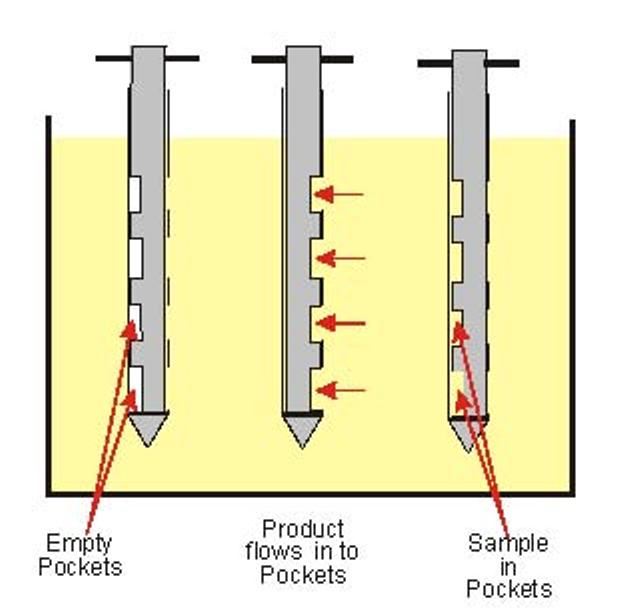

OPERATION:  1. Insert the sampler into the product​.
   2. At the required depth rotate handle
       to expose the collecting pockets.

       The product will flow in to the
       collecting pockets
  3. Rotate handle to close pockets
      and remove sampler.
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone   (804) 318-3686
Toll Free US (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
REF#                   OUTER TUBE     INNER ROD      POCKETS

675 1220J900      316ss                  316ss                 3

675 1220J1500    316ss                  316ss                 4

675 1220J2000    316ss                  316ss                 4
SAMPLER BODIES 40 mm DIAMETER
VOLUME ea

90 ml

90 ml

90 ml
LENGTH

600   mm

900   mm

1500 mm
REF#               OUTER TUBE       INNER ROD        POCKETS

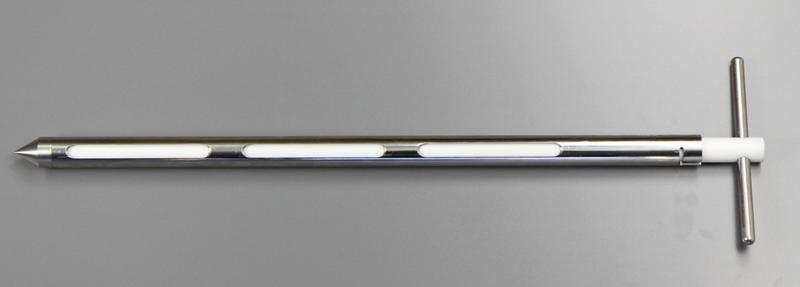

675 1220A600     316ss                  PTFE                   3

675 1220A900     316ss                  PTFE                   3

675 1220A1500   316ss                  PTFE                   5

675 1220B300     316ss                  316ss                  3

675 1220B600     316ss                  316 ss                 3

675 1220B900     316ss                  316 ss                 3

675 1220B1500   316ss                  316 ss                 5
SAMPLER BODIES 20 mm DIAMETER
VOLUME ea

15 ml

20 ml

20 ml

10 ml

15 ml

20 ml

20 ml
LENGTH

600   mm

900   mm

1500 mm

300   mm

600   mm

900   mm

1500 mm
SPECIFICATIONS
