QAQC LAB POINT SAMPLER

The new Point Sampler is ideal for taking samples at a specified depth.
Can be used for sampling both free flowing and sticky, cohesive powders.

• Large 100ml sample size
• 316 stainless steel
• Suitable for use with free flowing and cohesive powders
BUY ONLINE
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
QTY                REF #               DESCRIPTION

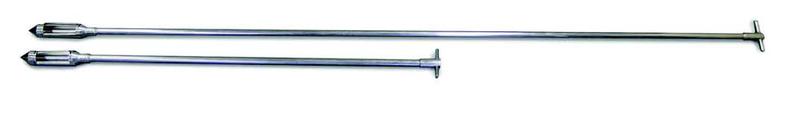

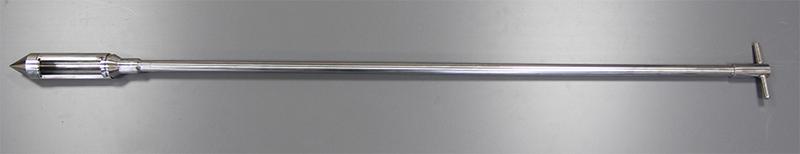

675 1640A1000          POINT SAMPLER 1000 mm x 100 ml

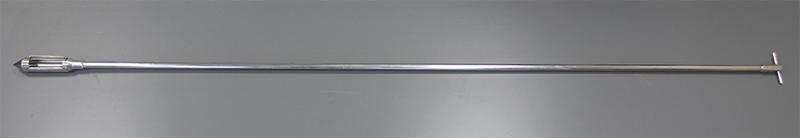

675 1640A2000          POINT SAMPLER 2000 mm x 100 ml
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]
BROCHURE
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone      (804) 318-3686
Toll Free US   (866) 244 1578
Fax                  (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
Email Address
First Name
Company Name
Last Name
Delivery Address
Address Line 2
Ship To Postal Code
Telephone
QUICK QUOTE
ADD BILL TO INFORMATION
Email Address
First Name
Company Name
Last Name
Billing Address
Address Line 2
Bill To Postal Code
Telephone
BILL TO SAME A SHIP TO
BROCHURE
Operation

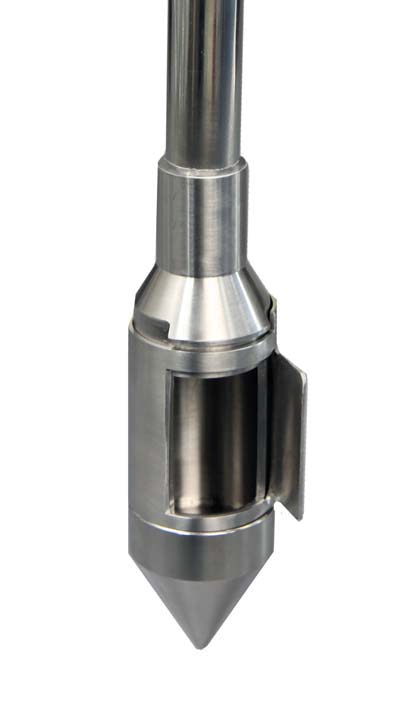

1. Ensure the sampling window is closed and then push sampler
    into the product to the required sampling depth

2. Rotate sampler through 360° - this will open the sampling
    window and push the surrounding product into the sample
    collecting chamber

3. Rotate the sampler backwards through 360° to close the
    sampling window

4. Withdraw the sampler
Point Sampler
Large Volume Sampling from a Set Point
