QTY
EJECTION ROD
QTY
BROCHURE POWDER LANCE
www.qclabequipment.com
Telephone   (804) 318-3686
Toll Free US (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
NEXT DAY DELIVERY AVAILABLE ON MANY ITEMS!
CUSTOM ORDERS AVAILABLE!
Part No.                     Sampler Length      Length of Sampling Slot          Max Sample Volume

675 2250A600            630 mm                    540 mm                                        190 ml

675 2250A1000        1030 mm                    930 mm                                        300 ml

675 2250A2000        2030 mm                  1500 mm                                        520 ml
675 8570A700 Sample Ejection Rod - 316 stainless steel - 700mm length

675 8570A1100 Sample Ejection Rod - 316 stainless steel - 1100mm length

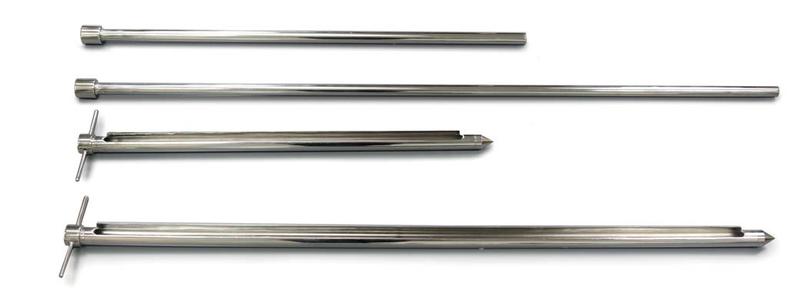

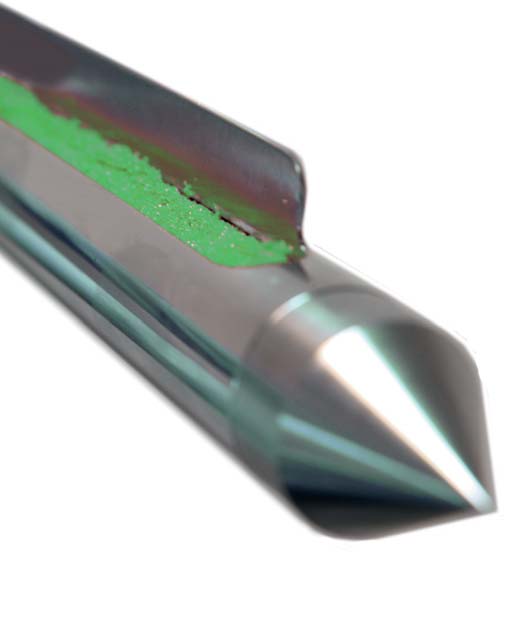

POWDER LANCE
Cross Sectional Sampler for Cohesive Powders
The Powder Lance can be used to take large volume samples of
cohesive powders. The sampler can be used horizontally through a
sack or else it can be used vertically.

• Cross sectional sampler
• 316 stainless steel
• Suitable for sticky cohesive powders
Operation:

1. Insert the sampler into the product.

2. Rotate the sampler through 360°. The scraper forces the powder in to the sampler along the length of the slot.

3. Remove the sampler.

4. Unscrew the tip of the sampler.

5. Push the Sample Ejection Rod into the Powder Lance to push out the sample
