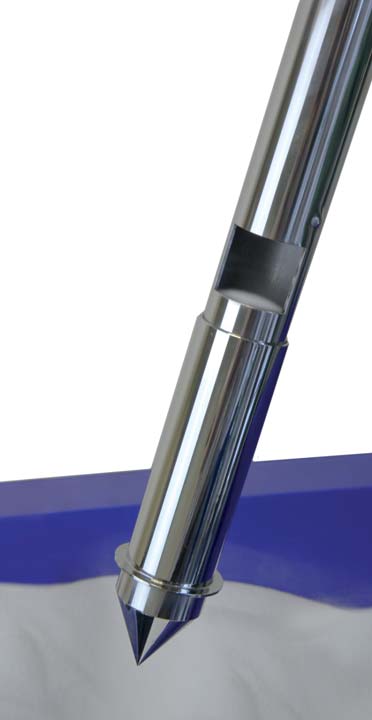

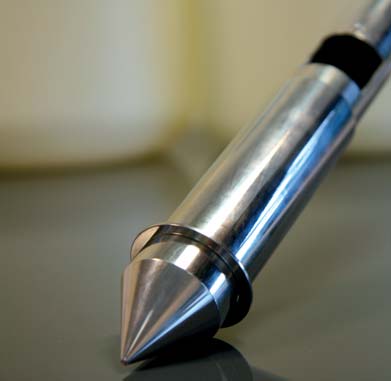

POWDERMAX LARGE VOLUME SLEEVE SAMPLER
Designed for use with free flowing powders, granules and grains.
The Powder Max enables large samples to be quickly and easily taken.
The Powder Max is made from 316 stainless steel.

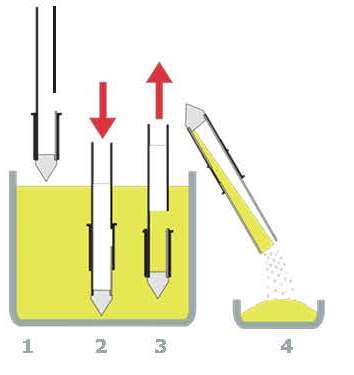

OPERATION:

1. Insert sampler into the product.

2. This action forces the sleeve upwards
    covering the sample hole and stopping
    powder from entering.

3. On pulling the sampler upwards, the sleeve moves
    down and the product can now enter the sampler.

4. Invert sampler to discharge the sample.
OVERALL LENGTH      MAX SAMPLE VOLUME

1000 mm                      150 ml
BUY ONLINE
Email Address
First Name
Company Name
Last Name
Delivery Address
Address Line 2
Ship To Postal Code
Telephone
QUICK QUOTE
ADD BILL TO INFORMATION
Email Address
First Name
Company Name
Last Name
Billing Address
Address Line 2
Bill To Postal Code
Telephone
SPECIAL INSTRUCTIONS
BILL TO SAME A SHIP TO
NEXT DAY DELIVERY AVAILABLE ON MANY ITEMS!
CUSTOM ORDERS AVAILABLE!
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

Outer Diameter of Outer Tube: 38mm
Inner Diameter of Inner Tube: 34mm
Overall Sampler Length: 1040mm
Slot Dimensions: 30 x 30mm
