POWER SAMPLER AUGER DRIVEN POWDER SAMPLING

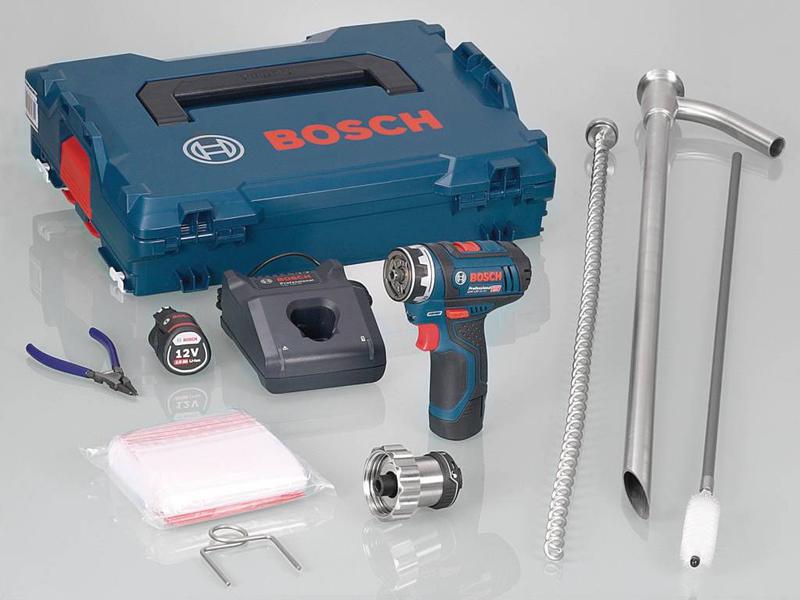

Drive Unit sets        Drive Unit and 2 batteries, Sampling Lance, Battery Charger (SPECIFY VOLTAGE) and Carrying Case


711 53020302             Drive Unit Set with 300 mm lance for horizontal pull of particles less than 2 mm diameter

711 53020602             Drive Unit Set with 600 mm lance for vertical pull of particles less than 2 mm diameter

711 53020902             Drive Unit Set with 900 mm lance for vertical pull of particles less than 2 mm diameter

711 530201202           Drive Unit Set with 1200 mm lance for vertical pull of particles less than 2 mm diameter

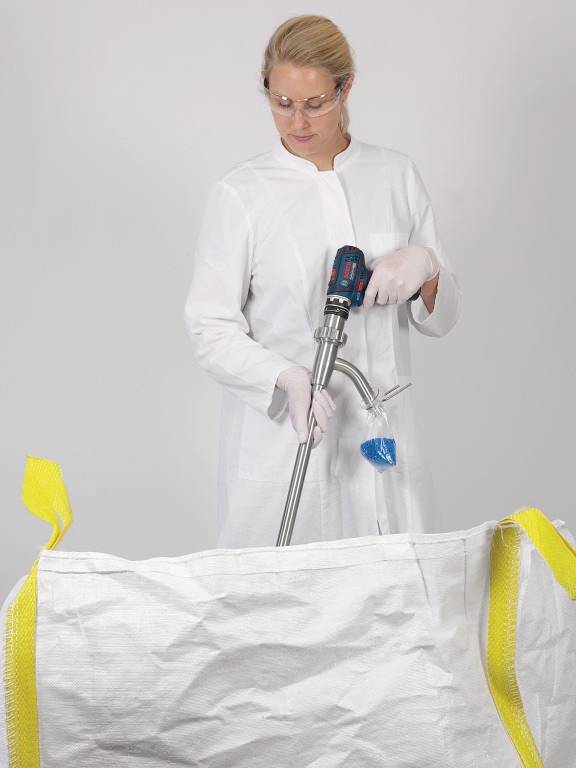

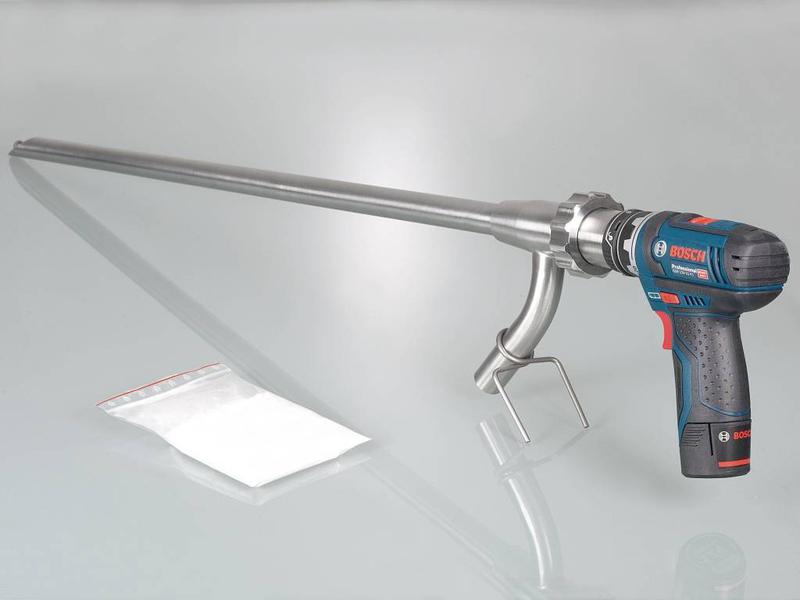

The Power Sampler consists of a convenient hand held drive unit which is
used to drive an auger. The auger draws the powder up the lance and into the collecting vessel.

• Free Flowing Powders and granules. Cohesive Powders
• 316 stainless steel (contact parts).
• Satin Finish
QTY
Drive Unit sets        Drive Unit and 2 batteries, Sampling Lance, Battery Charger (SPECIFY VOLTAGE) and Carrying Case


711 53020301             Drive Unit Set with 300 mm lance for horizontal pull of particles between  2-4 mm diameter

711 53020601             Drive Unit Set with 600 mm lance for vertical pull of particles between 2-4 mm diameter

711 53020901             Drive Unit Set with 900 mm lance for vertical pull of particles between 2-4 mm diameter

711 530201201           Drive Unit Set with 1200 mm lance for vertical pull of particles between 2 -4 mm diameter
HORIZONTAL PULL PARTICLES < 2 mm diameter
VERTICAL PULL PARTICLES  2 -4 mm diameter
Operation:

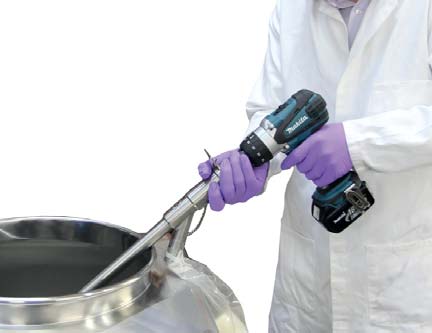

Insert the lance into the product. The auger within the lance will draw the
product up the lance and deposit it in the collecting vessel. Reversing the
direction of the auger will allow material within the lance to be returned at
the end of sampling.
BUY ONLINE
BROCHURE POWER SAMPLER
Email Address
First Name
Company Name
Last Name
Delivery Address
Address Line 2
Ship To Postal Code
Telephone
QUICK QUOTE
ADD BILL TO INFORMATION
Email Address
First Name
Company Name
Last Name
Billing Address
Address Line 2
Bill To Postal Code
Telephone
SPECIAL INSTRUCTIONS
BILL TO SAME A SHIP TO
EXIT PORT WITH 45 DEGREE ANGLE IS FOR VERTICAL APPLICATIONS
Quality assurance starts with the inspection of incoming goods! An all-layer sample of bulk goods is
no longer a problem with Power Sampler, the sampler for powders and granules.
Different lances and augers can be attached to the robust drive unit and swapped without any problems.
ACCESSORIES

DESCRIPTION                                                                                                          PART#

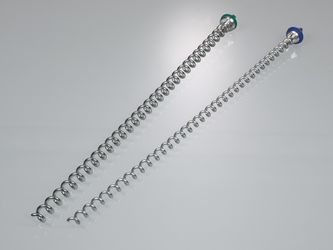

Spiral screw for powders up to 2 mm dia., for 300 mm                             711 653020312

Spiral screw for powders up to 2 mm dia., for 600 mm                             711 653020612

Spiral screw for powders up to 2 mm dia., for 900 mm                             711 653020912

Spiral screw for powders up to 2 mm dia., for 1200 mm                            711 653021212

Spiral screw for granules 2–4 mm dia., 300 mm                                           711 653020311

Spiral screw for granules 2 - 4 mm dia., for 600 mm                                  711 653020611

Spiral screw for granules 2 - 4 mm dia., for 900 mm                                   711653020911

Spiral screw for granules 2 - 4 mm dia., for 1200 mm                                711 653021211

Bag clip for Power Sampler                                                                               711 600066259

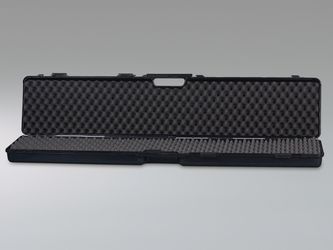

Transport case L x W x H 123 x 25 x 11 cm (not for 1200 mm)                     711 636002120

Sampling bottle LDPE 500 ml                                                                             711 603180500

Basket for sample bottles 500 ml, Ø 84 mm, incl. holding ring                   711 653022050

Basket for sample bottles 1000 ml, Ø 100 mm, incl. holding ring             711 653022100

Packaging bags with closure, 170x120 mm, 400 ml, 100 pieces                711 623480005
