ROAD TANKER SAMPLING VALVE
Valve Outlet Types

Standard Outlet Valve is ½” nominal bore with screwed connections

Firesafe Outlet Valve is ½” nominal bore with welded connections

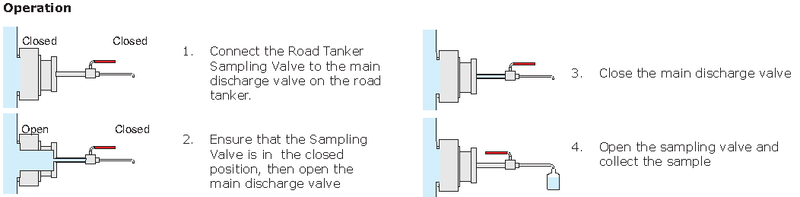

The plastic ball in the end of the sampler is pushed out of the way when the sampler is lowered
into the product. When the sampler is removed the plastic ball seals the sampler.

Note: This sampler is not suitable for high density liquids

The Road Tanker Sampling Valve is designed to allow road tankers to be safely
sampled before the tank is discharged.
Road Tanker Sampling Valve
Safety Sampling Valve
Part No.             Tanker Connection Outlet Valve Type              Main Gasket Material

675 5740A1       2½”                        BSP Standard                       Hard Leather

675 5740A2       2½”                        BSP Firesafe                         Hard Leather

675 5740A3       3”                          BSP Standard                        Hard Leather

675 5740A4       3”                          BSP Firesafe                          Hard Leather

675 5740P1       2½”                       BSP Standard                        PTFE

675 5740P2       2½”                       BSP Firesafe                          PTFE

675 5740P3       3”                          BSP Standard                        PTFE

675 5740P4       3”                          BSP Firesafe                          PTFE
Email Address
First Name
Company Name
Last Name
Delivery Address
Address Line 2
Ship To Postal Code
Telephone
QUICK QUOTE
ADD BILL TO INFORMATION
Email Address
First Name
Company Name
Last Name
Billing Address
Address Line 2
Bill To Postal Code
Telephone
SPECIAL INSTRUCTIONS
BILL TO SAME A SHIP TO
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

•316L Stainless Steel Contact Parts
•PTFE or HARD LEATHER Gasket
Outlet Valve Size: 0.5” NB
Outlet Valve Type: Firesafe or Standard
