HP2 AW PROBE FOR
POWDERS AND SEEDS

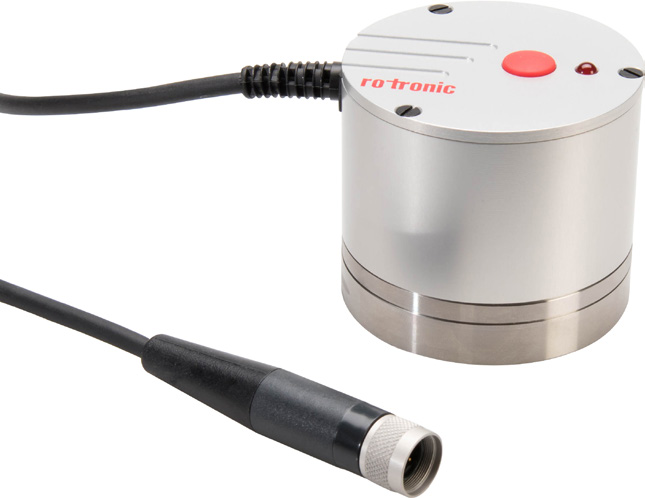

HC2 STATION PROBES

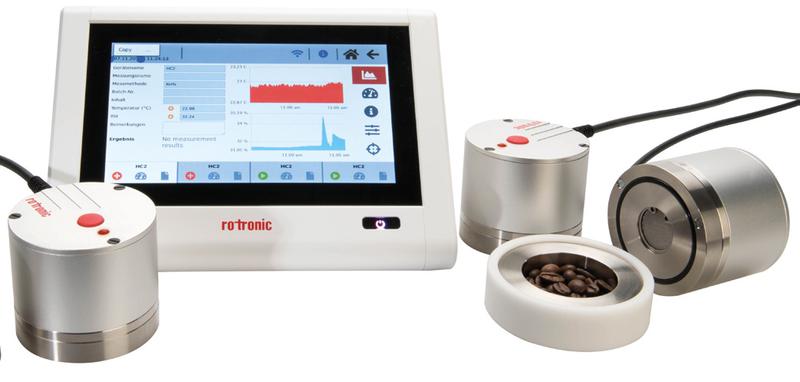

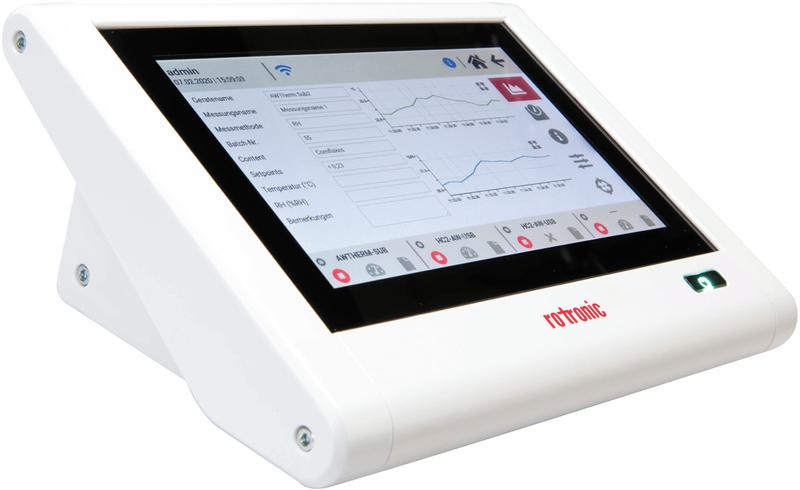

HYGROLAB C1 BENCH TOP
WATER ACTIVITY METER
648 HYGROLABC1
BUY ONLINE
KIT INCLUDES:

HygroLab C1 bench-top meter
AC adapter (115 VAC / 9 VDC)
(1) HC2-AW probe for the measurement of product samples
WP40 sample holder with depth reduction insert
PS14: pack of 100 disposable sample cups (14mm deep)
PS40: pack of 100 disposable sample cups (40mm deep)
1 box each: EA00 (0 %RH), EA10 (10 %RH), EA35 (35 %RH),
EA80 (80%RH) and EA95 (95%RH) humidity calibration standards
HW4 software CDROM
1.8m USB cable for connection of a PC
BROCHURE ROTRONIC HC1
FEATURES:

Stand alone system with ultra fast water activity measurement of up to 4 product samples
simultaneously

AwQuick Mode - accelerated water activity measurement in typically 5 minutes

AwE Mode: conventional water activity measurement with automatic detection of equilibrium

Includes 2 sizes of sample holders and disposable sample cups, humidity calibration standards, etc.

Includes the HW4 software for the capture of end values, live graph, data logging, etc.

◦HygroLab C1 bench-top meter accepts a large choice of probes, suitable for the direct measurement
 of products in bulk.
648 HYGROLAB C1      HYGROLAB C1 BENCH TOP WATER ACTIVITY KIT

648 PS14                     SET OF 100 PLASTIC SAMPLE CONTAINERS 14 mm HEIGHT

648 PS40                     SET OF 100 PLASTIC SAMPLE CONTAINERS 40 mm HEIGHT

WP 14S                       SAMPLE CONTAINER HOLDER FOR PS14 V2A STEEL 14 mm HEIGHT

WP 40                          SAMPLE CONTAINER HOLDER FOR PS14 / PS40 V2A STEEL 40 mm HEIGHT

WP 40TH                      SAMPLE CONTAINER HOLDER FOR PS14 / PS40 BRASS NICKEL PLATED 40mm HEIGHT
QTY           REF#                                DESCRIPTION
OPERATORS MANUAL ROTRONIC HC1 SOFTWARE
OPERATORS MANUAL ROTRONIC HC1
ROTRONIC provides a high-end laboratory device – the HygroLab C1 – for water activity measurements with up to four probes. Connect station probes or insertion probes for measuring water activity in cheese, meat, tobacco, building materials, animal feed, pharmaceuticals products and much more.
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone      (804) 318-3686
Toll Free US   (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
Email Address
First Name
Company Name
Last Name
Delivery Address
Address Line 2
Ship To Postal Code
Telephone
QUICK QUOTE
ADD BILL TO INFORMATION
Email Address
First Name
Company Name
Last Name
Billing Address
Address Line 2
Bill To Postal Code
Telephone
SPECIAL INSTRUCTIONS
BILL TO SAME A SHIP TO
648 HC2AW SET          Water activity measurement  probe for use with HP23AWA / HC1

  Includes WP40S - Dual 14mm/40mm sample cup holder (with insert)
  PS14 - 100 disposable sample cups, 14mm deep (0.55")
  PS40 - 100 disposable sample cups, 40mm deep (1.57")


648 HC2 AW      HC2 AW STATION PROBE (No Accessories)

648 HC2 AW      HC2 AW INSERTION PROBE (No Accessories)

648 HW4PQ      Professional Software with Water Activity Function

648 WP40TH     Water jacketed sample cup holder for PS14 & PS40 sample cups

648 AW KHS     Clamping device for Water Activity probe

648 W24           Spare wire mesh filter for AW-DIO, HC2-AW measuring station (1" ø)

648 AC1212      Power Adaptor for HP Series,100...240VAC / 5VDC, mini USB

648 ACAHP       115V / 9 VDC power supply for HygroLab
HUMIDITY STANDARDS

EA00-SCS 0.5 %RH

EA05-SCS 5 %RH

EA10-SCS 10 %RH

EA20-SCS 20 %RH

EA35-SCS 35 %RH

EA50-SCS 50 %RH

EA60-SCS 60 %RH

EA75-SCS 75 %RH

EA80-SCS 80 %RH

EA95-SCS 95 %RH
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

Probe connections (4) for use with station probes or insertion probes
Parameters shown AW, %RH, TEMP
Aw Quick ffunction Integrated with HW4 Software
Calculations All psychrometric calculations available or user defined
Probe adjustment Single or multiple point for RH & Temp
One or two point temp
Memory 4 x 500 Aw Values (2,000 Aw Values)
Measurement Interval 1 second
Start up time 3 seconds
Power Supply 8... 16 VDC with AC Adapter
Interfaces Ethernet or USB
Range of application -10 - 60 celsius 14 - 140 fahrenheit / 0-1 Aw 0 - 100% RH
LCD 3 Line alphanumeric with tren indicators
Clock Real Time Clock provides time stamp for every measurement
Current consumption Max 120 mA
IP Protection Class IP21
CE / EMC Conform EMC 2008/108/EG
FDA / GAMP FDA 21 CFR part 11 / GAMPS
Dimensions 225 mm x 170 mm x 70 mm
Weight 1100 gms
Material Aluminum , ABS - 757
HC2 INSERTION PROBES
