Capable of counting wheat, paddy, mustard, pearl millet, sorghum, black gram, green gram, lentil, red gram, finger millet, etc.

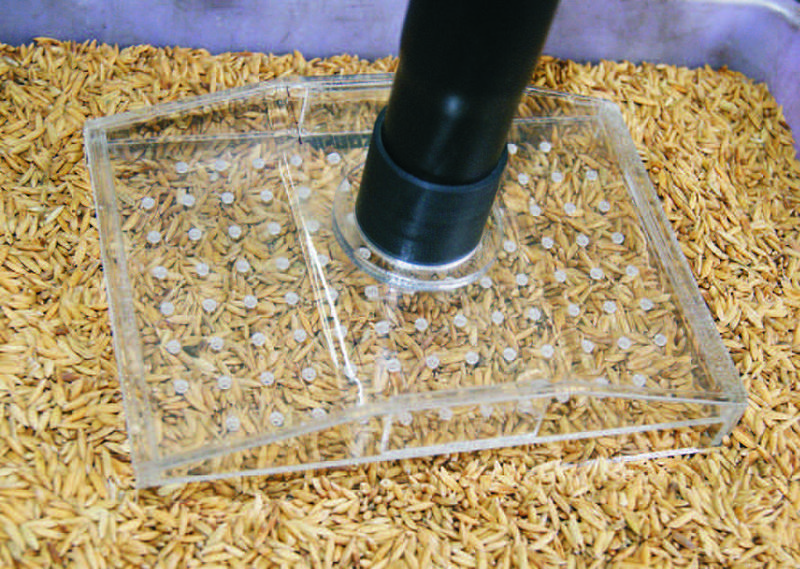

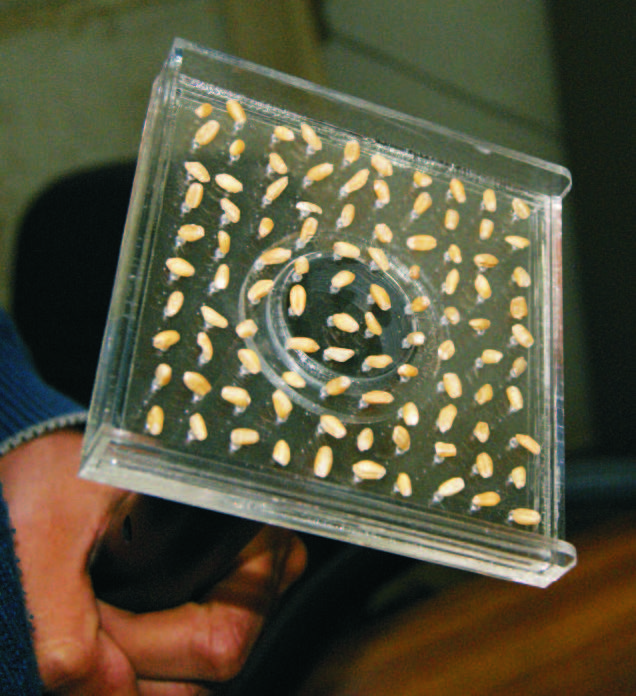

The seeds stick on the holes of the head. The head is fitted to the handle of the hose. The head has 50/100 holes, on which seeds are
sucked through vacuum. The seeds may be released from head after vacuum release.
Holes of different sizes of head are available, depending on the seed size, you may choose specific head. Thus, different sizes of seed can be counted. It has the facility to suck 50/100 seeds at a time and further used for germination potential of these seeds.
vacuum seed counter
OPERATING INSTRUCTIONS

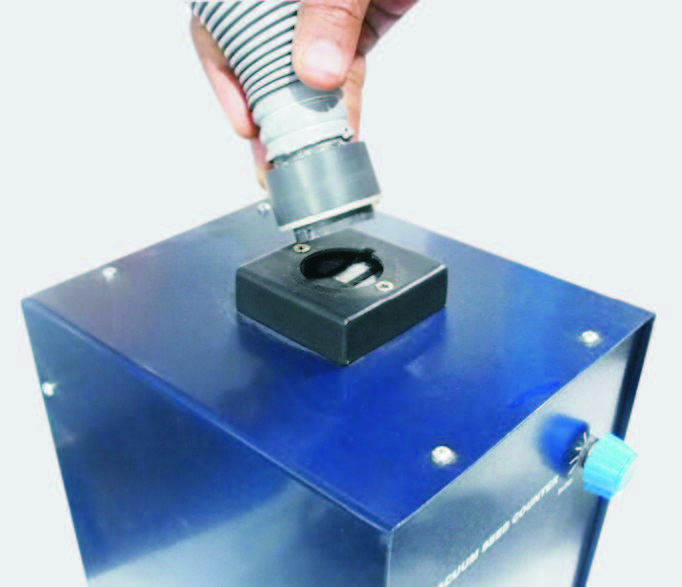

There is a fan inside the vacuum seed counter that blows air. In order for a fan to blow air,
it needs to draw air in. This is the air that sucks up the seeds and these seeds get stick on
the holes of the head, up to the time the machine is ON.

As soon as the machine is
switched OFF, the seeds get removed from the holes of the head.
vacuum seed counter
SPECIFICATIONS:

Counting system : Pneumatic sucking
Counting capability of head : 50/100 seeds
Placing on petri dish : Round head provided
Power supply : 230±10v, 50hz/60 hz single phase power supply
Acrylic heads : 50/100 holes
Number of heads : 11
1. RECTANGULAR HEAD (140 x 140mm)
Diameter : 1.2mm
Nos of Holes : 100

2. RECTANGULAR HEAD (116 x 116mm)
Diameter : 1.2mm
Nos of Holes : 50

3. RECTANGULAR HEAD (140 x 140mm)
Diameter : 2.0mm
Nos of Holes : 100

4. RECTANGULAR HEAD (116 x 116mm)
Diameter : 2.0mm
Nos of Holes : 50

5. RECTANGULAR HEAD (140 x 140mm)
Diameter : 0.5mm
Nos of Holes : 100
6. RECTANGULAR HEAD (116 x 116mm)
Diameter : 0.5mm
Nos of Holes : 50

7. ROUND HEAD (90mm Dia)
Diameter : 1.2mm
Nos of Holes : 50

8. ROUND HEAD (90 mm Dia)
Diameter : 2.0mm
Nos of Holes : 50

9. ROUND HEAD (90 mm Dia)
Diameter : 1.2mm
Nos of Holes : 100
(90mm Dia)

10. ROUND HEAD (90 mm Dia)
Diameter : 0.5mm
Nos of Holes : 50
(90mm Dia)

11. ROUND HEAD (90mm Dia)
Diameter : 0.5mm
Nos of Holes : 100 holes
vacuum seed counter
PURCHASE ONLINE
QUICK QUOTE
vacuum seed counter
QAQC VACUUM SEED COUNTERS are ideal for the seed testing and research laboratories;
quick and accurate counting of seeds.
