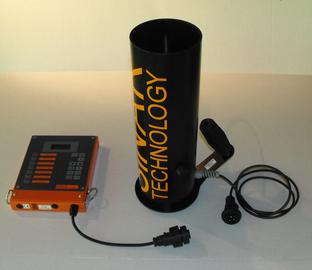

SINAR LSA 8100 capacitance based moisture

The Sinar Large Seed Analyzer Moisture Analyzer is a capacitance based analyzer that has seven pre-programmed channels, used most commonly to measure moisture levels in larger sized, free flowing agricultural commodities, like cacao beans and dried fruits, that are too large for the AP Series Sample Cell. Calibrations can easily be developed on site. Data can be transferred to inline moisture analyzer for dryers and silos.

Can be used where probe type sensors don't work because they compress the sample.

The Sinar LSA Moisture Analyzer offers the fastest and most convenient solution for measuring moisture content in larger sized agricultural commodities.

The principle behind the LSA is simplicity - when the cell is filled and the appropriate commodity program selected, the moisture content (%) is clearly shown within six seconds on the liquid crystal display. The average moisture content of a series of up to 254 samples can be measured in just one second.

The Sinar LSA also provides readouts of temperature, and its RS232 output allows information to be fed to a computer or to a printer for a hard copy record.

SINAR LSA MOISTURE ANALYZER

FOR LARGE SEEDS & NUTS

FEATURES

Portable

Measures moisture content in hundreds of free flowing agricultural commodities and food products.

Results accurate to .3% in just six seconds

User programmable with optional software

Connects to computer or available printer

Hundreds of uploadable calibrations available

Large Seed Analyzer

SINAR 620 LSA 8100

SPECIFICATIONS

Weight: 1.8 kg

Operating environment: 0°C to + 55°C

Storage temperature: -20° to +55°

Humidity up to 95% non condensing

Construction: Polyurethane Reaction Injection Moulding

Display: 3.5 Character. LCD 15 mm high

Power supply: Four C /1.5 V alkaline batteries

Processor: Intel 80C31 microprocessor

Memory: EPROM and RAM

Measurement range: 1-35% moisture, wet basis (depending on applications)

Print out: RS232 C

Accuracy:standard deviation 0.3 for moisture (dependent on application and moisture level) and 1.0 for hectolitre (bushel) weight

Repeatability: Standard deviation 0.05 to 0.15 (dependent on application)

Weight Balance: Oscillating weight balance which also operates in non-horizontal position. measures and corrects for weights between 20-240 grams.
