SUB SAMPLER
BROCHURE

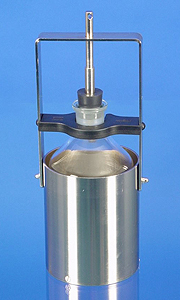

With Removable Glass Bottle
SUBMARINE SAMPLER PRO
BROCHURE


The Best Selling Heavy Duty Liquid Sampler
An ideal liquid sampler for most common liquids including
water, oils,sludge etc.

• Manufactured from spark suppressant brass
• Bottle can be easily removed using patented click system
• 130mm diameter - 300mm high - 3 kg weight
Operation
1. Lower Sub Sampler to the required depth.
2. Pull up sharply on the lowering cable to pull the stopper out
    of the bottle.
3. Wait a few seconds for the liquid to flow into the bottle
4. Pull up the Sub Sampler and retrieve the sample
Hand reels and cables are essential accessories when using sub
samplers (Bomb Samplers). The standard heavy duty hand reel is suitable for most situations.

However if you are using the sampler in an Ex rated environment use the Hand Reel Ex with the copper cables.

Do not use stainless steel chain for use in ATEX environments.

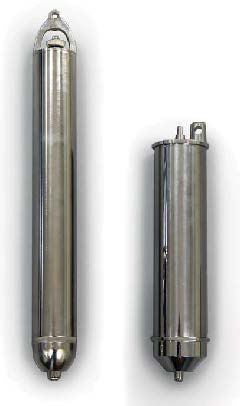

The Sub Sampler Pro
(some times called a ‘Bomb Sampler’) is used
throughout the world for both chemical and environmental sampling.

Its unique double action means
it can sample from a set distance from the
bottom of a container or alternatively at a mid-point.

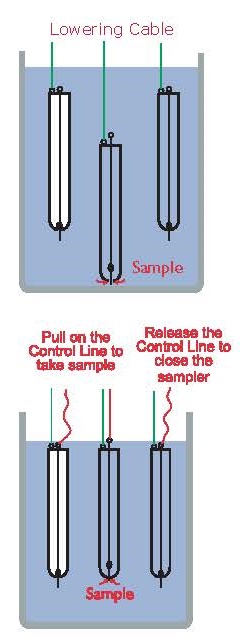

A. Sample from the bottom of a container
- Use a Lowering Cable

The Sub Sampler Pro is lowered until the plunger assembly touches the bottom of the container.
As the plunger assembly is pushed up, the sample is able to enter the device. When the sampler is raised the plunger
will drop down and seal the sampler.

B. Mid-height Sampling
- Use a Lowering Cable and a Control Line

Lower the Sub Sampler Pro into the liquid.

At the required sampling depth pull on the control line
to raise the plunger. This will allow the liquid to enter the sampler. Release the control line and
the plunger will drop down and seal the sampler.

Part No.              Volume         Material                                 Dimensions (Diameter x Height)  Ex Rated

675 5073A1000    1000 ml         Nickel plated brass & glass    125 mm x 300 mm                                Yes*
