TELESWAB
QTY
675 8011K01

675 8011K02
SPARES
QTY
675 8011A4B

675 8011A5

675 8011A6

675 8011A7

675 8011A12

675 8505A01
BROCHURE
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone     (804) 318-3686
Toll Free US  (866) 244 1578
Fax               (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
Universal Swab Holder - 316 stainless steel construction

Adjustable angle adapter to hold Swab Holder - aluminium

Template holder - stainless steel

Swabbing Template - PTFE - hole cut to customer’s requirements

Wrist Band

Storage Case
Kit 1 - Extendable TeleSwab Pole with swab holder (Note: swabs are not included)

Kit 2 - Extendable TeleSwab Pole with swabbing template

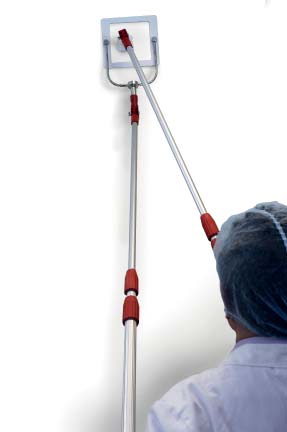

Taking swabs from high and diffi cult to reach places has always
been a problem. The TeleSwab has an extendable handle
which allows operators to quickly and easily take swabs from
previously inaccessible places.

Ideal for environmental swabbing and for use with large items of
processing equipment.

The sampler comes complete with an extendable handle that
can be extended to the correct length for easy swabbing. An
adjustable adapter allows the swabs etc. to be angled to meet
the contours of the item being sampled.
TELESWAB TELESCOPIC SWABBING TOOL
The PTFE Template tool allows a fixed area to be swabbed.

Note: Make sure that you
include the hole dimensions
at the time of ordering.

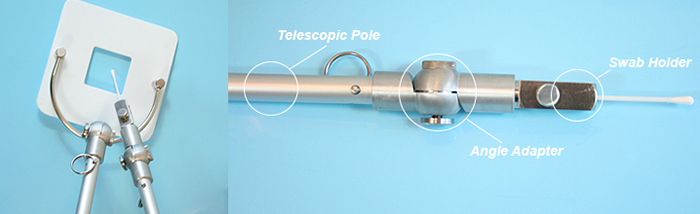

What do I need?

Two kits are available, each kit contains:

Kit 1 - Part No. 675 8011K01
          (1) Telescopic Pole (675 8011A3)
          (1) Angle Adapter (675 8011A5)
          (1) Swab Holder (675 8011A4B)

Kit 2 - Part No. 675 8011K02
          (1) Telescopic Pole (675 8011A3)
          (1) Template holder (675 8011A6)
          (1) Swabbing Template (675 8011A7)
               - hole cut to customer’s requirements
          (1) Angle Adapter
675 8011K01
675 8011K02
Angle adapter allows end section to be
set at the correct angle
REQUIRED TEMPLATE DIMENSIONS
BUY ONLINE
Email Address
First Name
Company Name
Last Name
Delivery Address
Address Line 2
Ship To Postal Code
Telephone
QUICK QUOTE
ADD BILL TO INFORMATION
Email Address
First Name
Company Name
Last Name
Billing Address
Address Line 2
Bill To Postal Code
Telephone
SPECIAL INSTRUCTIONS
BILL TO SAME A SHIP TO
OPERATING INSTRUCTIONS
NEXT DAY DELIVERY AVAILABLE ON MANY ITEMS!
CUSTOM ORDERS AVAILABLE!
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

HOLE SIZE DETERMINED BY CUSTOMER
MAXIMUM 4 inches x 4 inches
