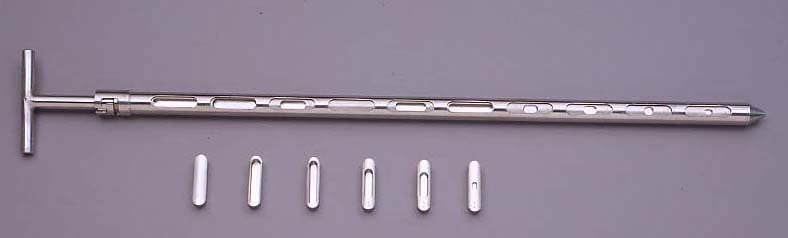

UD MASTER (Meets FDA Guidelines)
The patented U-D Master is designed for multilevel,
low volume sampling in the pharmaceutical industry.

It is ideal for use with free flowing powders.
By simply changing the sample inserts (cells), different volumes can be sampled.

The sampler is available in two convenient diameters:

-25mm (Standard U-D Master)
-13mm (Micro U-D Master) (Please contact us for info).

• Manufactured from 316 stainless steel
• Satin polish (Ra< 1microns)
• Take Multiple Samples from the same Point
• Range of sampler lengths
• Change the sample volume by changing the insert
• Special finishes and materials of construction available on request.
675 1230A300          300 mm                5                           5

675 1230A600          600 mm              10                          10

675 1230A900          900 mm                6                            6

675 1230A1200      1200 mm               8                             8

675 1230A1500      1500 mm             10                            10

675 1230A1800      1800 mm             12                            12

TWO SAMPLE COLLECTION POINTS 25 mm DIAMETER

675 1230B600          600 mm                5                            10

675 1230B900          900 mm                7                             14

675 1230B1200      1200 mm                8                             16

675 1230B1500      1500 mm              10                             20

675 1230B1800      1800 mm              12                             24

THREE SAMPLE COLLECTION POINTS 25 mm DIAMETER

675 1230C900          900 mm                 5                             15

675 1230C1200      1200 mm                 7                             21

675 1230C1500      1500 mm                 8                             24

675 1230C1800      1800 mm               10                             30
QTY
QTY
Sample Inserts are available in a range
of sizes from 0.1ml to 4.0ml, plus blank inserts
More than one sample can be taken from
the same sampling point
(See double or triple styles).

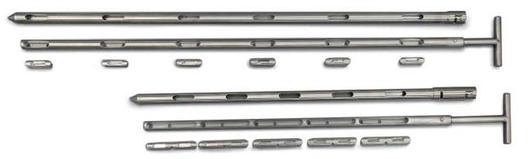

SINGLE COLLECTION POINT
TWO COLLECTION POINTS
OPERATION:

1. Select the correct volume Inserts and fit them
     into the Inner Rod.

2. Slide the assembled Inner Rod into the Outer Sleeve
    at the lowest sampling level

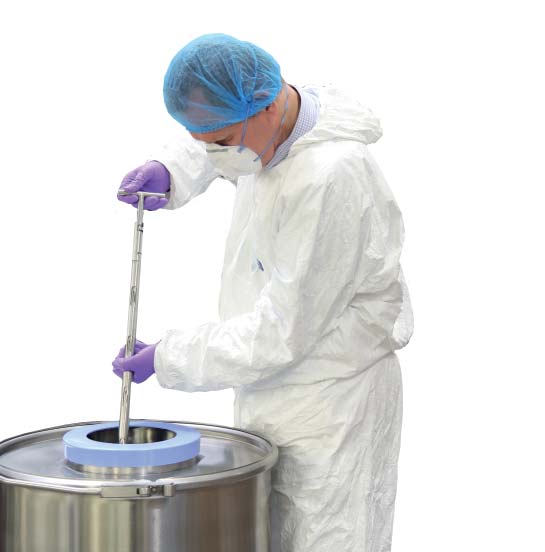

3. Insert the sampler into the product, turn the handle
    to expose the sampling cells to the product.

4. Double and Triple Style samplers - pull the handle to
     the next level to expose the next set of sampling cells.

5. Turn the handle so no Sampling Inserts are exposed then
     remove the sampler from the product.

6. Remove the Inner Rod from the Outer Sleeve, the
    individual  sampling inserts can then be easily
    removed for analysis.
Raise the Inner Rod to the
Second sampling position

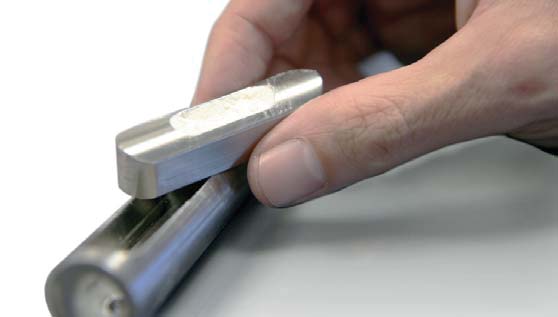

Sample Inserts are stamped with their volume for easy identification

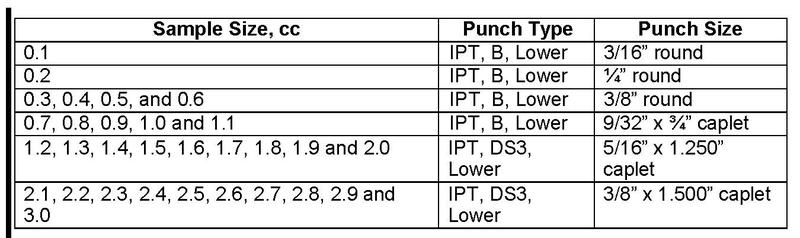

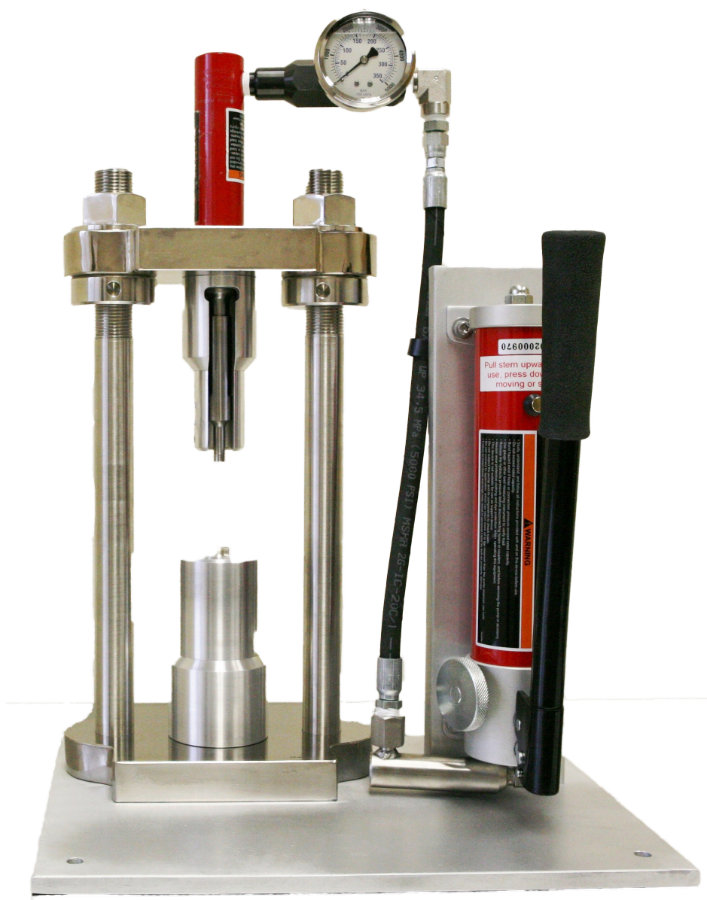

SEE UD TABLET MAKER (FOR SINGLE STYLE ONLY REDUCES SAMPLING ERRORS)
