BROCHURE UNIT DOSE SLEEVE SAMPLER

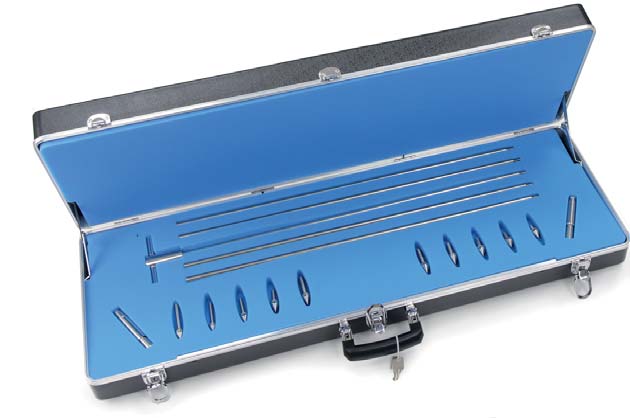

UD SLEEVE SAMPLER SET
QTY
675 1500S01
SAMPLE TIP 1 VOLUME
Includes:   1 x T-bar handle - 600mm
                  4 x handle extension rods - 600mm
                  1 x Type 1 sample chamber (for Tips 0.1 to 1.2ml)
                  1 x Type 2 sample chamber (for Tips 1.3 to 2.5ml)
                  10 x Sampling tips (0.1ml to 2.5ml - see below)
                  1 x High Quality Sampler Case - lockable
ACCESSORIES AND SPARES
QTY
675 1500A01 T BAR HANDLE 600 mm

675 1500A02 HANDLE EXTENSION 600 mm

675 1500C01 PROTECTIVE CASE

675 XRF CERTIFICATION
SAMPLE TIP 2 VOLUME
SAMPLE TIP 3 VOLUME
SAMPLE TIP VOLUME
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone      (804) 318-3686
Toll Free US   (866) 244 1578
Fax                  (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
NEXT DAY DELIVERY AVAILABLE ON MANY ITEMS!
CUSTOM ORDERS AVAILABLE!
U-D Sleeve Sampler
The U-D Sleeve Sampler is extensively used in the pharmaceutical industry for accurate, small volume sampling of free flowing powders and granules.

It is ideal for Unit Dose Sampling.

• Single Point Unit Dose Sampler
• 316 stainless steel
• Use extension rods to increase the length of the sampler
Operation

1. Insert the sampler into the product.

2. At the required depth pull up the sampler
    slightly (this upwards action will force the
    sleeve down the sample chamber and expose
    the ports) the product can then fall into the sample chamber.

3. As the sampler is removed the excess powder
    will fall out of the overfl ow leaving an accurate
    volume of powder in the sample chamber.
U-D Sleeve Sampler Set (1500S-01) - The set includes a range of 10
interchangeable tips to allow different sample volumes to be taken.
Extension rods allow samples to be taken from a depth of up to 3m.
SAMPLE TIP 4 VOLUME
SAMPLE TIP 5 VOLUME
SAMPLE TIP 6 VOLUME
SAMPLE TIP 7 VOLUME
SAMPLE TIP 8 VOLUME
SAMPLE TIP 9 VOLUME
