QAQC Lab Heavy Duty Multi level SLOT SAMPLERS

Slot Sampler cross sectional sampler 1210A
Highly representative sampling is fast and simple with our aluminum Grainspear sampler.
This spiral sampler is easy to use and gives great results.

The spiral position of the pockets gives superior sampling results. This means the bottom pocket opens and fills first giving a more representative sample.
SPIRAL DESIGN ANODIZED ALUMINUM GRAINSPEAR SAMPLER
ONLINE PRICING
LENGTH            DIAM

300   mm            25 mm

600   mm            25 mm

1000 mm            25 mm

1500 mm            25 mm

2000 mm            25 mm


600   mm            25 mm

1000 mm            25 mm

1500 mm            25 mm


900  mm             40 mm

1500 mm            40 mm

2000 mm            40 mm



600 mm              25 mm

1000 mm            25 mm

1500 mm            25 mm
BROCHURE
logo
logo
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone    (804) 318-3686
Toll Free US (866) 244 1578
Fax                 (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
COHESIVE SLOT SAMPLER 316 STAINLESS STEEL
 LENGTH

600 mm

1000 mm

1500 mm
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
REF#

675 1210A300

675 1210A600

675 1210A1000

675 1210A1500

675 1210A2000


675 1210B600

675 1210B1000

675 1210B1500


675 1210K1000

675 1210K1500

675 1210K2000

WITH CUTTING SCROLL

675 1216A 600

675 1216A 1000

675 1216A 1500
VOLUME

45     ml

110   ml

190   ml

300   ml

370   ml


110   ml

190   ml

300   ml


750   ml

1000 ml

1300 ml



110   ml

190   ml

300   ml
SLOTS

3

3

4

5

5


3

4

5


3

5

7



3

4

5
SPECIFICATIONS
QUICK QUOTE
VOLUME

110 ml

190 ml

300 ml
REF #

675 2210A600

675 2210A1000

675 2210A1500
DIAMETER

25 mm

25 mm

25 mm
SLOTS

3



5
STORE SEARCH
QAQC LAB LOGO
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
QAQC LAB LOGO
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]
The sampler is particularly suited for larger powders, granule and grain sampling.
This can be from IBC, kegs, silos, railway trucks, ships and almost all applications.
The lightweight aluminum construction means even the long samplers are easy to operate

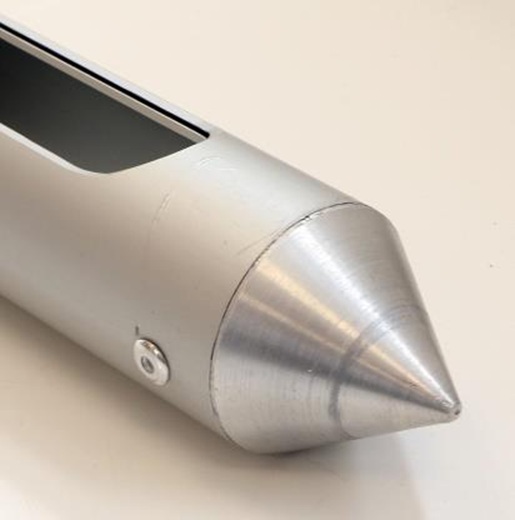

and handle. The tip is fixed permanently so it can not be lost.

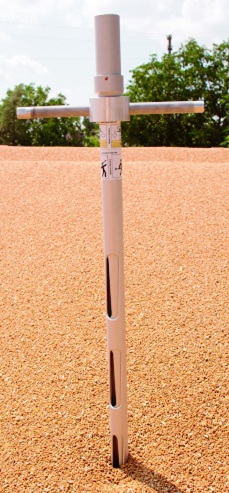

Push the grain sampler into the material in the closed position. Slowly open the sampler and
because of the spiral design of the pockets, the bottom pocket will open first. Close the

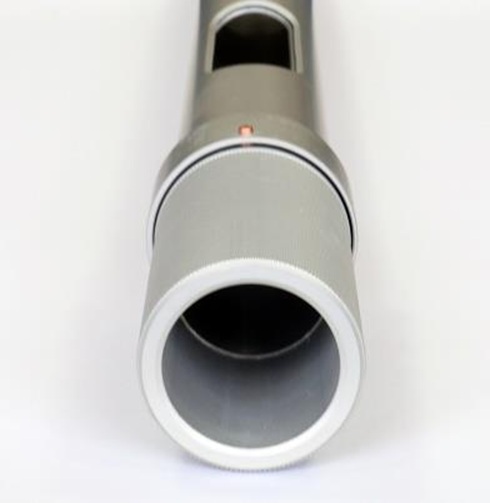

sampler, remove and empty through the handle.

Part No.                   Length          No. of Sampling Points

675 1942A1000     985 mm          4

675 1942A1500   1485 mm          6

675 1942A2000   1985 mm          8

675 1942A2500   2485 mm        10
