Reusable Sampler for creams, pastes & gels

Sampler for medium viscosity MATERIALS REUSABLE
QAQC LAB VISCOUS SAMPLER

REUSABLE SAMPLER FOR CREAM PASTES AND GELS
Suitability:             Medium viscosity
reusable viscous sampler
reusable viscous sampler
reusable viscous sampler
OPERATION

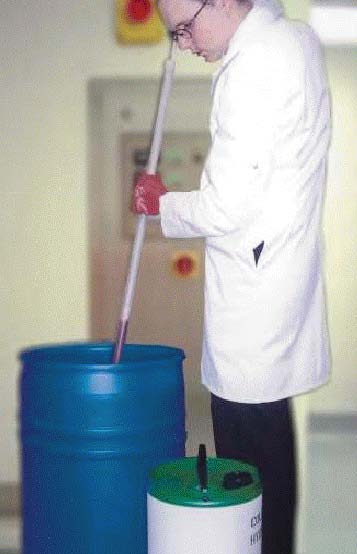

1. Insert the sampler into the product.

2. At the required depth pull handle to suck product into the sampler.


3. Remove the sampler from the product. Run the cleaning ring down the          sampler to remove any product that adheres to the side of the sampler


4. Push down the handle to remove the sample
QAQC LAB VISCOUS SAMPLER
675 7000
Ideal for sampling creams, shampoos, soaps, honey and other semi viscous materials. After sampling the sampler can be completely dismantled into its component parts for quick and thorough cleaning.
PURCHASE ONLINE
675 7000S600                           600 mm                316 stainless steel       160 ml

675 7000S1000                       1000 mm                316 stainless steel      300 ml

675 7000S1500                       1500 mm                316 stainless steel      450 ml

675 7000P600                           600 mm                PP                                 160 ml

675 7000P1000                       1000 mm                PP                                 300 ml

675 7000P2000                       2000 mm                PP                                 650 ml

675 7000T600                           600 mm                PTFE                             160 ml

675 7000T1000                        1000 mm               PTFE                              300 ml

675 7000T2000                        2000 mm               PTFE                              650 ml
PART                                      LENGTH                MATERIAL                    CAPACITY
​ALSO SEE  DISPOSABLE VISCOUS SAMPLERS
reusable viscous sampler
Material:   Food grade PTFE, Polypropylene (PP) or 316 Stainless Steel

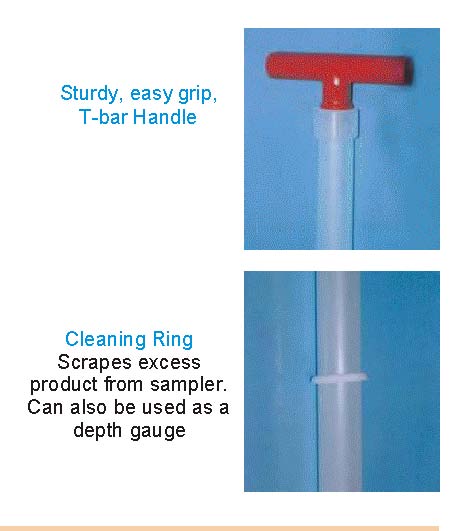

CLEANING RING SCRAPES EXCESS PRODUCT FROM SAMPLER.CAN ALSO BE USED AS A DEPTH GAUGE
STURDY, EASY GRIP T-BAR HANDLE
reusable viscous sampler
